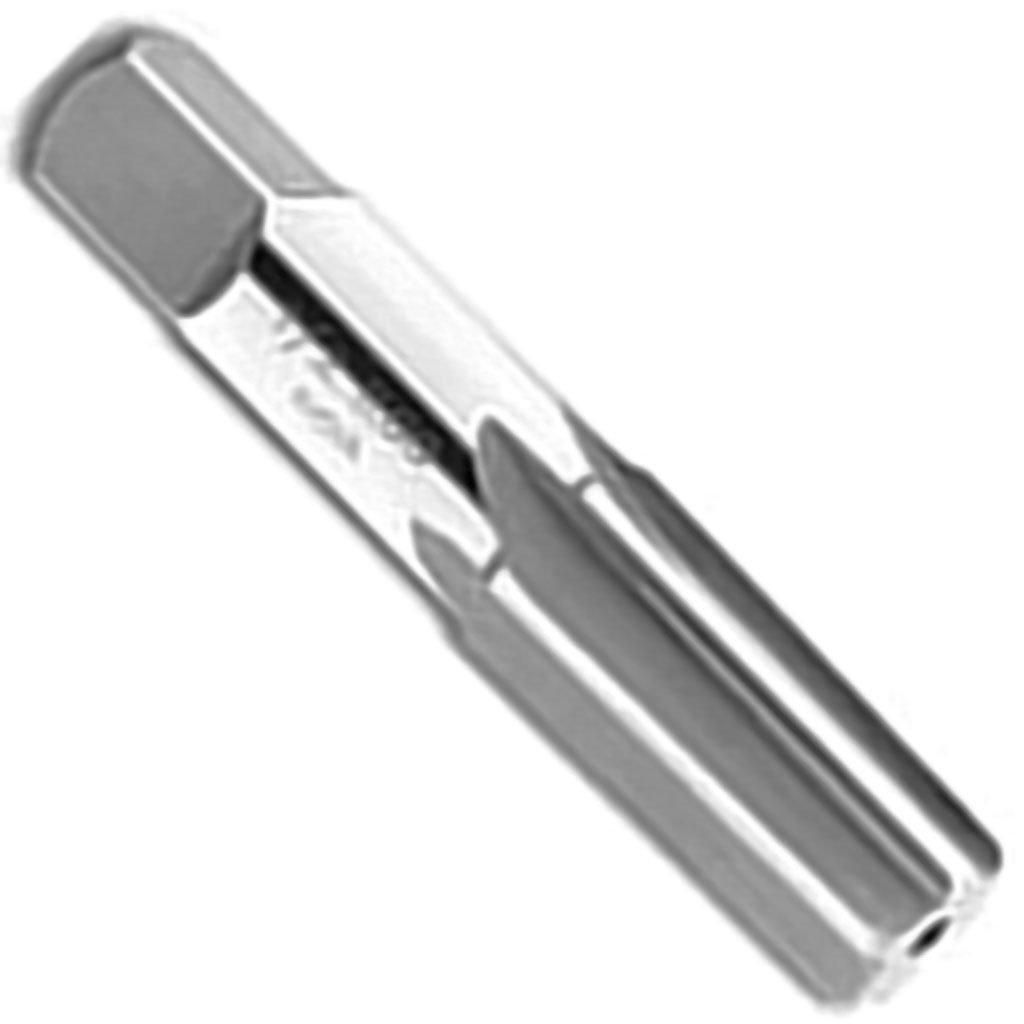

Picture of HSS TMX Taper Pipe Reamers with 3/4" taper per foot, Straight Flute, HSS, 1/2" size with .751 large end diameter x .665 small end diameter and 1-3/8" flute length x 3-1/8" overall length (OAL), 6 Flute

HSS TMX Taper Pipe Reamers with 3/4" taper per foot, Straight Flute, HSS, 1/2" size with .751 large end diameter x .665 small end diameter and 1-3/8" flute length x 3-1/8" overall length (OAL), 6 Flute

Part Number: TOO5-060-025
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1425951
Vendor: Sussex Tool and Supply
$46.28

Description

Hss Tmx Taper Pipe Reamers With 3/4" Taper Per Foot, Straight Flute, Hss, 1/2" Size With .751 Large End Diameter X .665 Small End Diameter And 1-3/8" Flute Length X 3-1/8" Overall Length (Oal), 6 Flute High Speed Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Reamer
Type Of Tool Solid Round
Reamer Type Pipe
Dimensions & Sizing
Overall Length 3.1250 79.38MM
Flutes/Inserts 6
Tool Dia 0.5000 12.70MM - 1/2
Flute Length 1.3750 34.93MM
Performance & Capacity
Cut Dia Min 0.6653 16.90MM
Cut Dia Max 0.7510 19.08MM
Materials & Finish
Tool Material High Speed Steel
