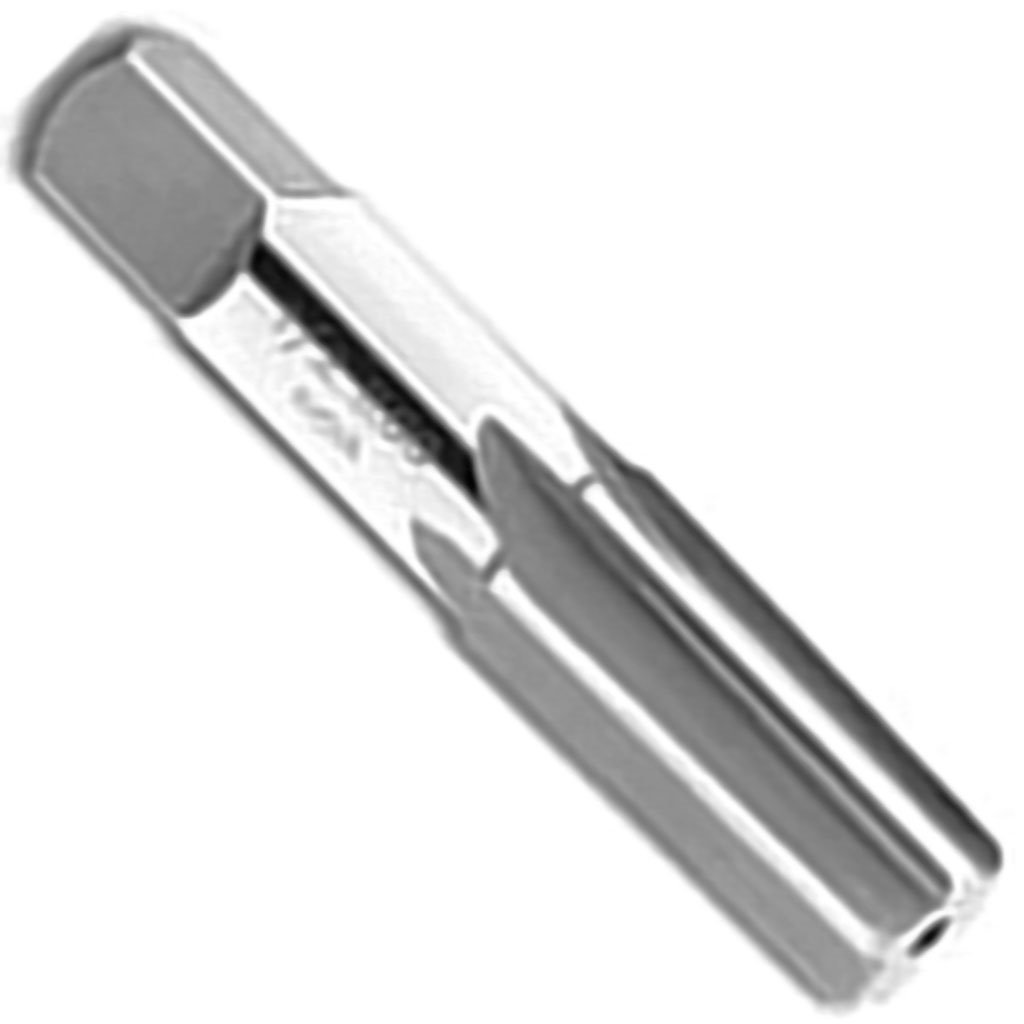

Picture of HSS TMX Taper Pipe Reamers with 3/4" taper per foot, Straight Flute, HSS, 1-1/4" size with 1.553 large end diameter x 1.444 small end diameter and 1-3/4" flute length x 4" overall length (OAL), 10 Flute

HSS TMX Taper Pipe Reamers with 3/4" taper per foot, Straight Flute, HSS, 1-1/4" size with 1.553 large end diameter x 1.444 small end diameter and 1-3/4" flute length x 4" overall length (OAL), 10 Flute

Part Number: TOO5-060-040
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1425954
Vendor: Sussex Tool and Supply
$131.13

Description

Hss Tmx Taper Pipe Reamers With 3/4" Taper Per Foot, Straight Flute, Hss, 1-1/4" Size With 1.553 Large End Diameter X 1.444 Small End Diameter And 1-3/4" Flute Length X 4" Overall Length (Oal), 10 Flute High Speed Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Reamer
Type Of Tool Solid Round
Reamer Type Pipe
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Flutes/Inserts 10
Tool Dia 1.2500 31.75MM - 1-1/4
Flute Length 1.7500 44.45MM
Performance & Capacity
Cut Dia Min 1.4440 36.68MM
Cut Dia Max 1.5530 39.45MM
Materials & Finish
Tool Material High Speed Steel
