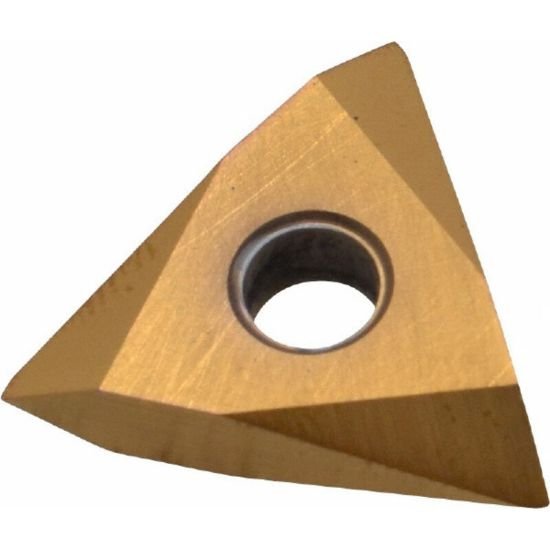

Picture of Horizon TPMC43NV 323FG Threading Insert Int / Ext Neutral 1.00TPI - 6.00TPI UN

Horizon TPMC43NV 323FG Threading Insert Int / Ext Neutral 1.00TPI - 6.00TPI UN

Part Number: HOR30835 ISO: TPMC 43NV 160112FG ANSI:TPMC43NV 323FG
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1023734
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

HORIZON 30835 Triangle Insert Positive TiAIN + TiN STAINLESS STEELS AND HIGH TEMP ALLOYS, SOME NON-FARRUS APLICATIONS AND FOR NON-INTURUPTED
Products specifications
Attribute name Attribute value
General Information
Shipping State N.Carolina
Made In USA YES
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Neutral
Thread Type UN
Inter/Extern Int / Ext
Full Or Partial Profile Partial Profile
Dimensions & Sizing
Insert Size Ic 43
Thread Pitch 1.00TPI - 6.00TPI 25.40MM - 4.23MM
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0050 0.13MM - 0.0080 0.20MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAIN + TiN
Grade 323FG
Compatibility & Fit
Insert Fits On Edge
