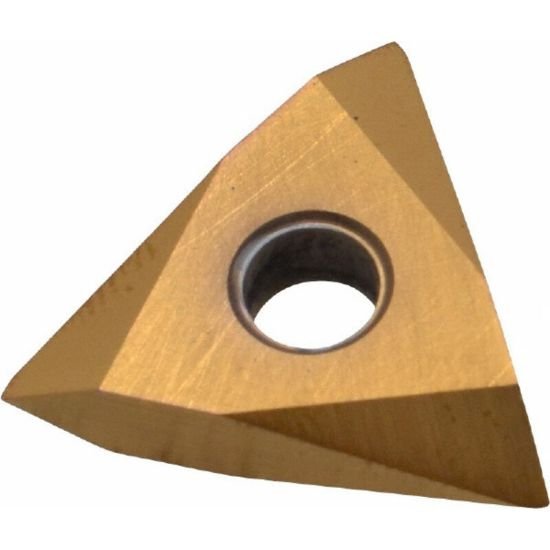

Picture of Horizon TPMC32NV 323FG Threading Insert Int / Ext Neutral 8.00TPI UN

Horizon TPMC32NV 323FG Threading Insert Int / Ext Neutral 8.00TPI UN

Part Number: HOR30485 ISO: TPMC 32NV 160112FG ANSI:TPMC32NV 323FG
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
SKU: 1193376

Description

HORIZON 30485 Triangle Insert Positive TiAIN + TiN STAINLESS STEELS AND HIGH TEMP ALLOYS, SOME NON-FARRUS APLICATIONS AND FOR NON-INTURUPTED
Products specifications
Attribute name Attribute value
General Information
Shipping State N.Carolina
Made In USA YES
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Neutral
Thread Type UN
Inter/Extern Int / Ext
Full Or Partial Profile Partial Profile
Dimensions & Sizing
Insert Size Ic 32
Thread Pitch 8.00TPI
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0030 0.08MM - 0.0050 0.13MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAIN + TiN
Grade 323FG
Compatibility & Fit
Insert Fits On Edge
Standards & Identification
ISO Space TPMC 32NV 160112FG
Ansi Space TPMC 32NV 323FG
