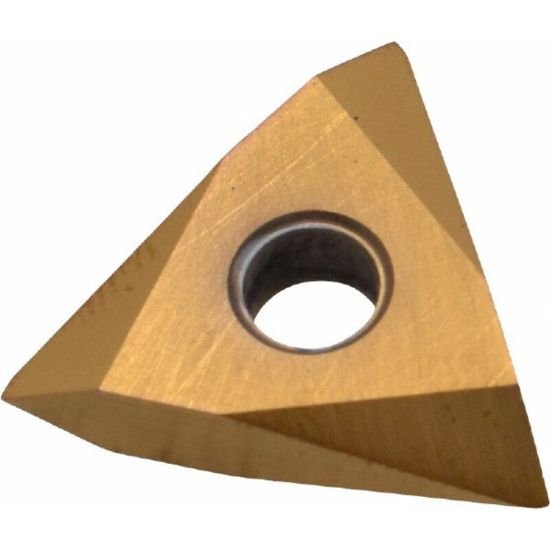

Picture of Horizon TPMA 43NV C23 Threading Insert Int / Ext Neutral 1.00TPI - 6.00TPI UN

Horizon TPMA 43NV C23 Threading Insert Int / Ext Neutral 1.00TPI - 6.00TPI UN

Part Number: HOR28550 ISO: TPMA 43NV C23 ANSI:TPMA 43NV C23
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1023715
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

HORIZON 28550 Triangle Insert Positive Uncoated Premium C2-C3 Grade for Non-Ferrous Metals, Plastics and Non-Metals.
Products specifications
Attribute name Attribute value
General Information
Shipping State N.Carolina
Made In USA YES
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Neutral
Thread Type UN
Inter/Extern Int / Ext
Full Or Partial Profile Partial Profile
Dimensions & Sizing
Insert Size Ic 43
Thread Pitch 1.00TPI - 6.00TPI 25.40MM - 4.23MM
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0050 0.13MM - 0.0080 0.20MM
Performance & Capacity
Cut Rating Gray Iron, Ductile Iron
Materials & Finish
Cutting Edge Mat Carbide
Grade C23
Compatibility & Fit
Insert Fits Seco On Edge
