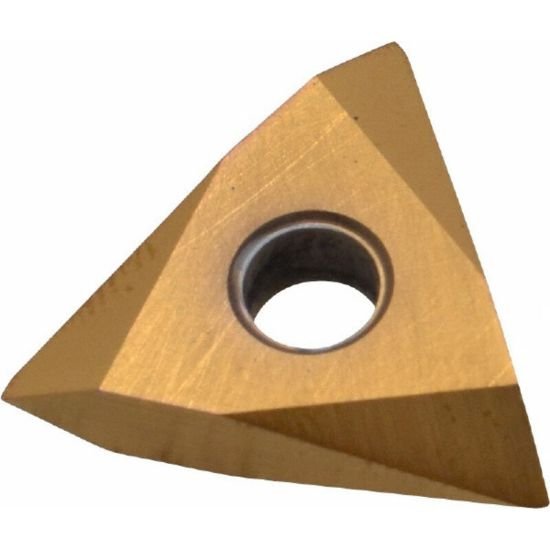

Picture of Horizon TNMC 64NV C23 Threading Insert Int / Ext Neutral 4.00TPI UN

Horizon TNMC 64NV C23 Threading Insert Int / Ext Neutral 4.00TPI UN

Part Number: HOR29062 ISO: TNMC64NV C23 ANSI:TNMC 64NV C23
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1023725
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

HORIZON 29062 Triangle Insert Positive Uncoated Premium C2-C3 Grade for Non-Ferrous Metals, Plastics and Non-Metals.
Products specifications
Attribute name Attribute value
General Information
Shipping State N.Carolina
Made In USA YES
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Neutral
Thread Type UN
Inter/Extern Int / Ext
Full Or Partial Profile Partial Profile
Dimensions & Sizing
Insert Size Ic 64
Thread Pitch 4.00TPI
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0050 0.13MM - 0.0080 0.20MM
Performance & Capacity
Cut Rating Gray Iron, Ductile Iron
Materials & Finish
Cutting Edge Mat Carbide
Grade C23
Compatibility & Fit
Insert Fits On Edge
