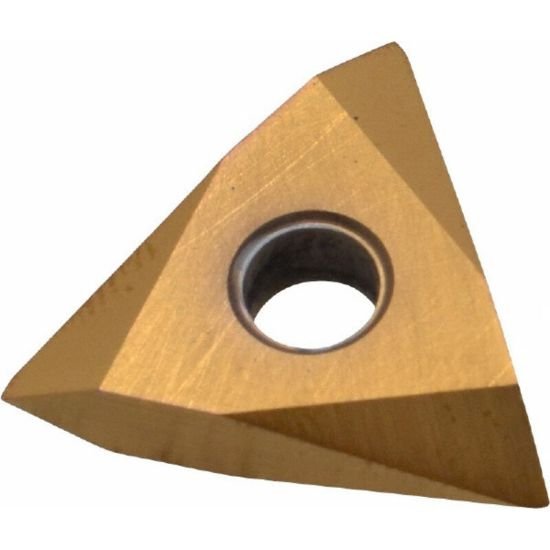

Picture of Horizon TNMA 32NV C23 Threading Insert Int / Ext Neutral 8.00TPI UN

Horizon TNMA 32NV C23 Threading Insert Int / Ext Neutral 8.00TPI UN

Part Number: HOR49192 ISO: TNMA 32NV C23 ANSI:TNMA 32NV C23
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1023707
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

HORIZON 49192 Triangle Insert Positive Uncoated Premium C2-C3 Grade for Non-Ferrous Metals, Plastics and Non-Metals.
Products specifications
Attribute name Attribute value
General Information
Shipping State N.Carolina
Made In USA YES
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Neutral
Thread Type UN
Inter/Extern Int / Ext
Full Or Partial Profile Partial Profile
Dimensions & Sizing
Insert Size Ic 32
Thread Pitch 8.00TPI
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0030 0.08MM - 0.0050 0.13MM
Performance & Capacity
Cut Rating Gray Iron, Ductile Iron
Materials & Finish
Cutting Edge Mat Carbide
Grade C23
Compatibility & Fit
Insert Fits Seco On Edge
