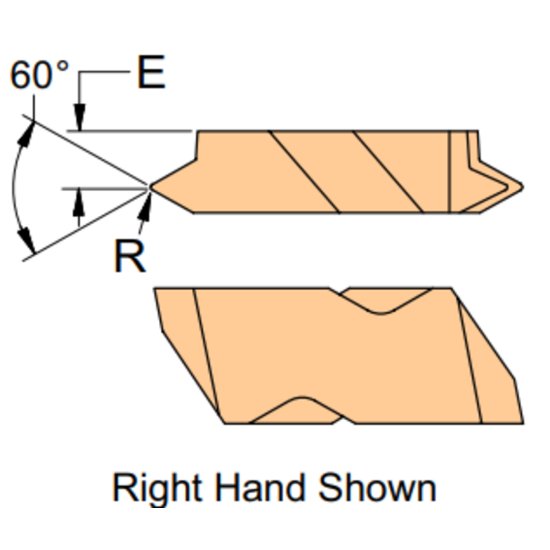

Picture of Horizon HTF 4R 310F Indexable, Threading Insert Top Notch 60.0° Ext 10.00TPI - 44.00TPI Int 9.00TPI - 24.00TPI 0.003 Corner Radius Carbide TiAlN

Horizon HTF 4R 310F Indexable, Threading Insert Top Notch 60.0° Ext 10.00TPI - 44.00TPI Int 9.00TPI - 24.00TPI 0.003 Corner Radius Carbide TiAlN

Part Number: HOR41020 ISO: HTF 4R 310F ANSI:HTF 4R 310F

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HORIZON
SKU: 1168509
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10
HORIZON 41020 Top Notch Groove Threading Positive TiAlN STEELS, STAINLESS steelS, HIGH TEMP ALLOY, CAST IRON, USED IN ALL APLICATIONS
Products specifications
Attribute name Attribute value
Shipping State N.Carolina
Made In USA YES
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating TiAlN
Insert/Tool INSERT
Insert Application General Purpose
Corner Radius 0.0030 0.08MM
Insert Style TOP NOTCH
Insert Shape/Cutter Pocket Shape Top Notch
Grade 310F
Insert Type Positive
Insert Size Ic 4
Hand Right Hand
Thread Pitch EXT 10.00TPI - 44.00TPI INT 9.00TPI - 24.00TPI
Thread Type 60.0°
Inter/Extern Int / Ext
Insert Type/Oriantation Top Notch
Full Or Partial Profile Partial Profile
Threed Teeth 1
