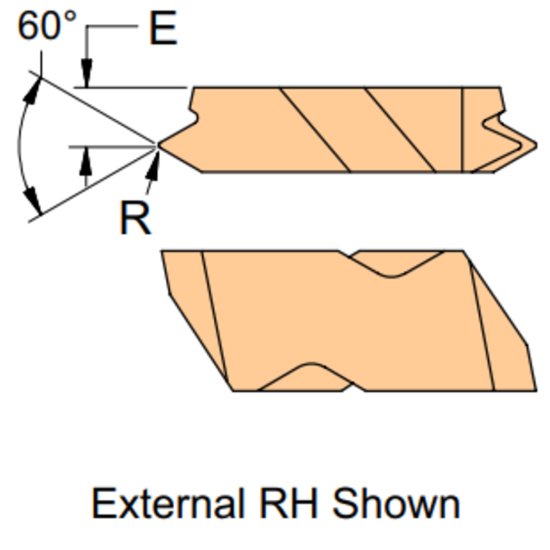

Picture of Horizon HTC 3L32I 310F Indexable, Threading Insert Top Notch UN 32.00TPI 0.001 Corner Radius Carbide TiAlN

Horizon HTC 3L32I 310F Indexable, Threading Insert Top Notch UN 32.00TPI 0.001 Corner Radius Carbide TiAlN

Part Number: HOR32325 ISO: HTC 3L32I 310F ANSI:HTC 3L32I 310F
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1169009
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

HORIZON 32325 Top Notch Groove Threading Positive TiAlN STEELS, STAINLESS steelS, HIGH TEMP ALLOY, CAST IRON, USED IN ALL APLICATIONS
Products specifications
Attribute name Attribute value
General Information
Shipping State N.Carolina
Made In USA YES
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style TOP NOTCH
Insert Shape/Cutter Pocket Shape Top Notch
Insert Type Positive
Hand Left Hand
Thread Type UN
Inter/Extern Int / Ext
Insert Type/Oriantation Top Notch
Full Or Partial Profile Full Profile
Dimensions & Sizing
Insert Size Ic 3
Thread Pitch 32.00TPI
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0010 0.03MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Grade 310F
