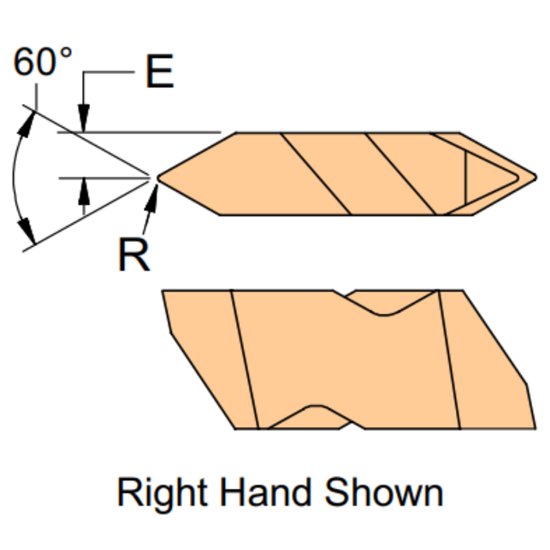

Picture of Horizon HT 4R C23 Indexable, Threading Insert Top Notch 60.0° Ext 4.00TPI - 20.00TPI Int 4.00TPI - 12.00TPI 0.006 Corner Radius Carbide

Horizon HT 4R C23 Indexable, Threading Insert Top Notch 60.0° Ext 4.00TPI - 20.00TPI Int 4.00TPI - 12.00TPI 0.006 Corner Radius Carbide

Part Number: HOR32262 ISO: HT 4R C23 ANSI:HT 4R C23

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HORIZON
SKU: 1197479
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10
HORIZON 32262 Top Notch Groove Threading Positive Uncoated Premium C2-C3 Grade for Non-Ferrous Metals, Plastics and Non-Metals.
Products specifications
Attribute name Attribute value
Shipping State N.Carolina
Made In USA YES
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Gray Iron, Ductile Iron
Insert/Tool INSERT
Insert Application General Purpose
Corner Radius 0.0065 0.17MM
Insert Style TOP NOTCH
Insert Shape/Cutter Pocket Shape Top Notch
Grade C23
Insert Type Positive
Insert Size Ic 4
Hand Right Hand
Thread Pitch EXT 4.00TPI - 20.00TPI INT 4.00TPI - 12.00TPI
Thread Type 60.0°
Inter/Extern Int / Ext
Insert Type/Oriantation Top Notch
Full Or Partial Profile Partial Profile
Threed Teeth 1
