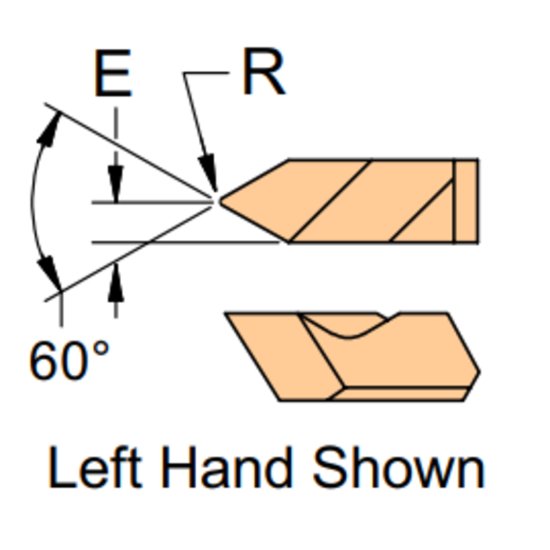

Picture of Horizon HT 1L 323FG Indexable, Threading Insert Top Notch 60.0° Ext 14.00TPI - 44.00TPI Int 12.00TPI - 24.00TPI 0.003 Corner Radius Carbide TiAIn + TiN

Horizon HT 1L 323FG Indexable, Threading Insert Top Notch 60.0° Ext 14.00TPI - 44.00TPI Int 12.00TPI - 24.00TPI 0.003 Corner Radius Carbide TiAIn + TiN

Part Number: HOR40002 ISO: HT 1L 323FG ANSI:HT 1L 323FG
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1193818
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

HORIZON 40002 Top Notch Groove Threading Positive TiAIN + TiN STAINLESS STEELS AND HIGH TEMP ALLOYS, SOME NON-FARRUS APLICATIONS AND FOR NON-INTURUPTED
Products specifications
Attribute name Attribute value
General Information
Shipping State N.Carolina
Made In USA YES
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style TOP NOTCH
Insert Shape/Cutter Pocket Shape Top Notch
Insert Type Positive
Hand Left Hand
Thread Type 60.0°
Inter/Extern Internal
Insert Type/Oriantation Top Notch
Full Or Partial Profile Partial Profile
Dimensions & Sizing
Insert Size Ic 1
Thread Pitch EXT 14.00TPI - 44.00TPI INT 12.00TPI - 24.00TPI
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0030 0.08MM
Performance & Capacity
Cut Rating <30HRC Steel, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAIN + TiN
Grade 323FG
