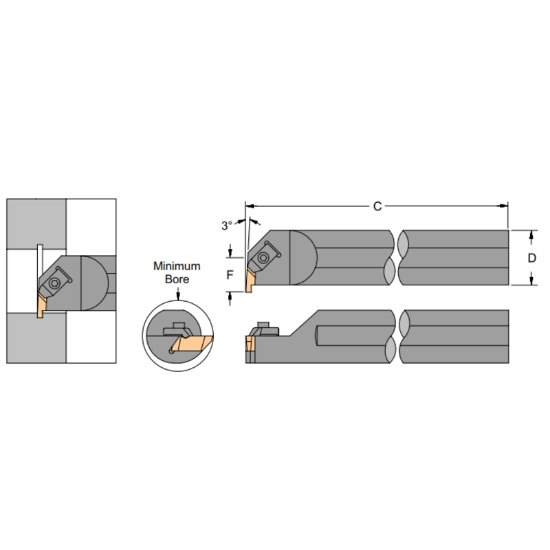

Picture of Horizon A12-TEL2 Grooving,Threading Boring Bar Top Notch 0.750 Shank Size 2

Horizon A12-TEL2 Grooving,Threading Boring Bar Top Notch 0.750 Shank Size 2

Part Number: HOR39260 ISO: A12-TEL2 ANSI:A12-TEL2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HORIZON
SKU: 1202522
Vendor: Sussex Tool and Supply
$0.00
HORIZON 39260 Top Notch Grooving,Threading Boring Bar Dia0.7500 Positive Steel
Products specifications
Attribute name Attribute value
Shipping State N.Carolina
Made In USA YES
Cutter Type Boring Bar
Tool Material Steel
Machine Side Connection Type Boring Bar
Mach Side Connection Size 0.7500 19.05MM
Overall Length 10.0000 254.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Type Of Tool Boring Bar
Insert/Tool TOOL
Insert Application General Purpose
Insert Style TOP NOTCH
Insert Shape/Cutter Pocket Shape Top Notch
Insert Type Positive
Insert Size Ic 2
Hand Left Hand
Inter/Extern Internal
Insert Type/Oriantation Top Notch
Min Bore 1.1250
Clamp Screw S-310
Clamp/Wedge CM-74
