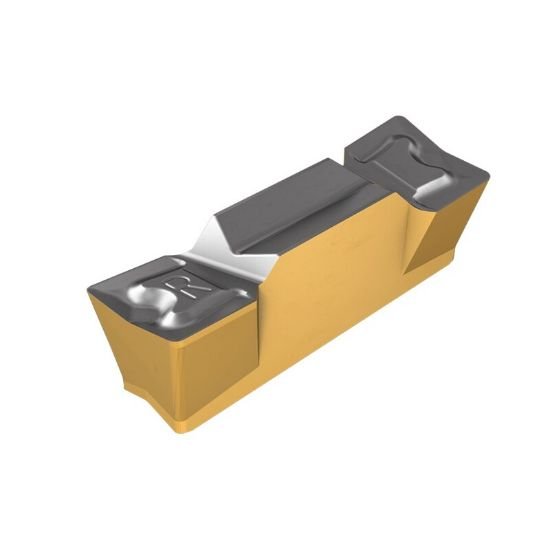

Picture of HFPR 6004 IC5010 Iscar 6200392 Face Grooving Insert 0.2360 5.99mm Wide 0.0160 0.41mm Radius

HFPR 6004 IC5010 Iscar 6200392 Face Grooving Insert 0.2360 5.99mm Wide 0.0160 0.41mm Radius

Part Number: ISC6200392 ISO: HFPR 6004 IC5010 ANSI:HFPR 6004 IC5010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1084878
Vendor: Sussex Tool and Supply
$46.70
This product has a minimum quantity of 10
ISCAR 6200392 Dog Bone Face Grooving Positive TiCN + Al2O3 + TiN A hard substrate, improved MTCVD and a thick alpha alumina CVD coating. Recommended mainly for grey cast iron at stable or slightly unstable conditions. Can be used successfully also on nodular cast iron.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Gray Iron, Ductile Iron
Coating TiCN + Al2O3 + TiN
Insert/Tool INSERT
Insert Application General Purpose
Corner Radius 0.0160 0.41MM
Insert Style HF
Insert Shape/Cutter Pocket Shape Dog Bone
Grade IC5010
Insert Type Positive
Insert Size Ic 6
Insert Type/Oriantation Clamp Down
Cutting Width 0.2360 5.99MM
Face Groove Min Dia 0.8200
