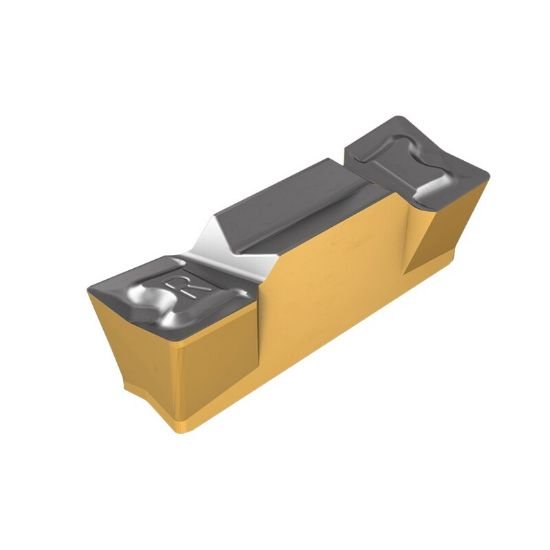

Picture of HFPL 6004 IC9015 Iscar 6200133 Face Grooving Insert 0.2360 5.99mm Wide 0.0160 0.41mm Radius

HFPL 6004 IC9015 Iscar 6200133 Face Grooving Insert 0.2360 5.99mm Wide 0.0160 0.41mm Radius

Part Number: ISC6200133 ISO: HFPL 6004 IC9015 ANSI:HFPL 6004 IC9015
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1084748
Vendor: Sussex Tool and Supply
$40.45
This product has a minimum quantity of 10

Description

ISCAR 6200133 Dog Bone Face Grooving Positive TiCN + Al2O3 + TiN A hard substrate with a cobalt enriched layer, CVD coated. Excellent thermal stability and resistance to chipping and plastic deformation. Recommended for high speed machining of steel at stable conditions.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style HF
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Type Positive
Insert Type/Oriantation Clamp Down
Dimensions & Sizing
Insert Size Ic 6
Cutting Width 0.2360 5.99MM
Geometry & Angles
Corner Radius 0.0160 0.41MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Face Groove Min Dia 0.8200
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + Al2O3 + TiN
Grade IC9015
