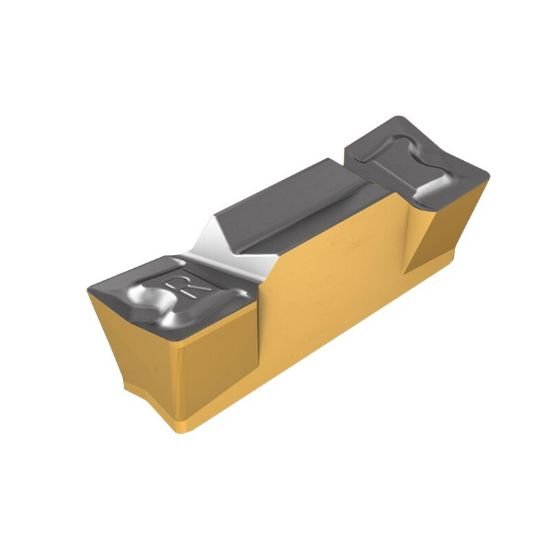

Picture of HFPL 6004 IC428 Iscar 6290153 Face Grooving Insert 0.2360 5.99mm Wide 0.0160 0.41mm Radius

HFPL 6004 IC428 Iscar 6290153 Face Grooving Insert 0.2360 5.99mm Wide 0.0160 0.41mm Radius

Part Number: ISC6290153 ISO: HFPL 6004 IC428 ANSI:HFPL 6004 IC428
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1084979
Vendor: Sussex Tool and Supply
$40.45
This product has a minimum quantity of 10

Description

ISCAR 6290153 Dog Bone Face Grooving Positive TIC + Al2O3 A hard substrate with multilayer CVD coating. Recommended for machining gray and nodular cast iron at moderate to high cutting speeds.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style HF
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Type Positive
Insert Type/Oriantation Clamp Down
Dimensions & Sizing
Insert Size Ic 6
Cutting Width 0.2360 5.99MM
Geometry & Angles
Corner Radius 0.0160 0.41MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Face Groove Min Dia 0.8200
Materials & Finish
Cutting Edge Mat Carbide
Coating TIC + Al2O3
Grade IC428
