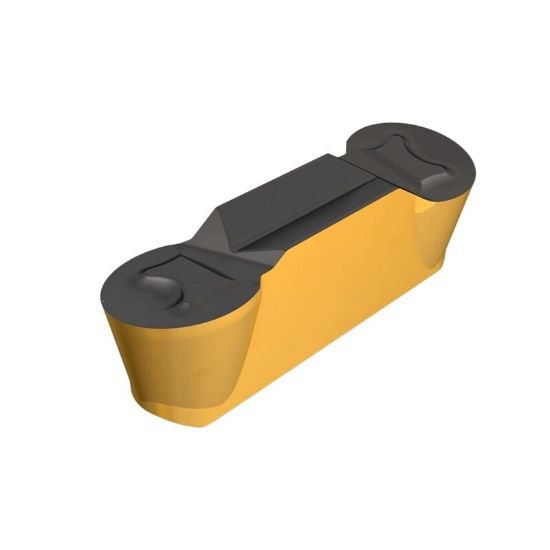

Picture of HFPL 5025 IC808 Iscar 6200309 Face Grooving Insert 0.1970 5.00mm Wide 0.0980 2.49mm Radius

HFPL 5025 IC808 Iscar 6200309 Face Grooving Insert 0.1970 5.00mm Wide 0.0980 2.49mm Radius

Part Number: ISC6200309 ISO: HFPL 5025 IC808 ANSI:HFPL 5025 IC808
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$38.59
This product has a minimum quantity of 10
SKU: 1084899

Description

ISCAR 6200309 Dog Bone Face Grooving Positive TiAlN + AlTiN + TiN A tough, submicron substrate with excellent chipping resistance, combined with a "SUMO TEC" PVD coating. Provides high wear resistance. Recommended for a very wide range of materials.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style HF
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Type Positive
Insert Type/Oriantation Clamp Down
Dimensions & Sizing
Insert Size Ic 5
Cutting Width 0.1970 5.00MM
Geometry & Angles
Corner Radius 0.0980 2.49MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, High Temp
Face Groove Min Dia 0.8700
Face Groove Max Dia 6.6900
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + AlTiN + TiN
Grade IC808
