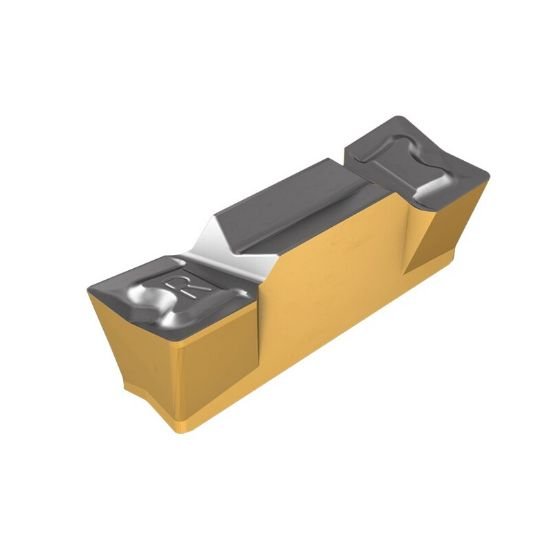

Picture of HFPL 5004 IC428 Iscar 6290244 Face Grooving Insert 0.1970 5.00mm Wide 0.0160 0.41mm Radius

HFPL 5004 IC428 Iscar 6290244 Face Grooving Insert 0.1970 5.00mm Wide 0.0160 0.41mm Radius

Part Number: ISC6290244 ISO: HFPC 5005 IC428 ANSI:HFPC 5005 IC428
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1084980
Vendor: Sussex Tool and Supply
$36.73
This product has a minimum quantity of 10

Description

ISCAR 6290244 Dog Bone Face Grooving Positive TIC + Al2O3 A hard substrate with multilayer CVD coating. Recommended for machining gray and nodular cast iron at moderate to high cutting speeds.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style HF
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Type Positive
Insert Type/Oriantation Clamp Down
Dimensions & Sizing
Insert Size Ic 5
Cutting Width 0.1970 5.00MM
Geometry & Angles
Corner Radius 0.0160 0.41MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Face Groove Min Dia 0.8700
Face Groove Max Dia 6.6900
Materials & Finish
Cutting Edge Mat Carbide
Coating TIC + Al2O3
Grade IC428
