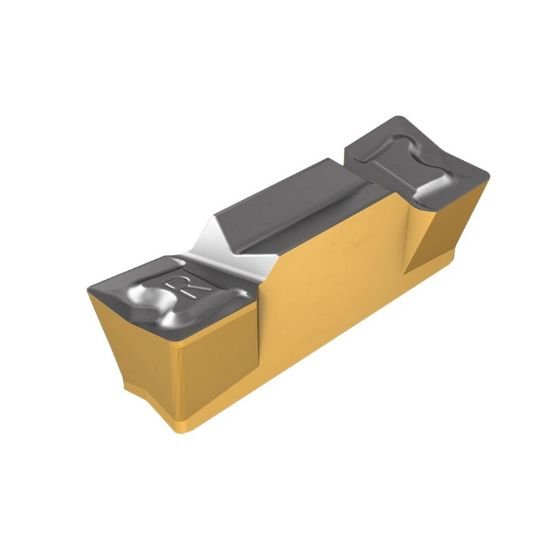

Picture of HFPL 3003 IC5010 Iscar 6200394 Face Grooving Insert 0.1180 3.00mm Wide 0.0120 0.30mm Radius

HFPL 3003 IC5010 Iscar 6200394 Face Grooving Insert 0.1180 3.00mm Wide 0.0120 0.30mm Radius

Part Number: ISC6200394 ISO: HFPL 3003 IC5010 ANSI:HFPL 3003 IC5010
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1084880
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

ISCAR 6200394 Dog Bone Face Grooving Positive TiCN + Al2O3 + TiN A hard substrate, improved MTCVD and a thick alpha alumina CVD coating. Recommended mainly for grey cast iron at stable or slightly unstable conditions. Can be used successfully also on nodular cast iron.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style HF
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Type Positive
Insert Type/Oriantation Clamp Down
Dimensions & Sizing
Insert Size Ic 3
Cutting Width 0.1180 3.00MM
Geometry & Angles
Corner Radius 0.0120 0.30MM
Performance & Capacity
Cut Rating Gray Iron, Ductile Iron
Face Groove Min Dia 1.0100
Face Groove Max Dia 2.0300
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + Al2O3 + TiN
Grade IC5010
