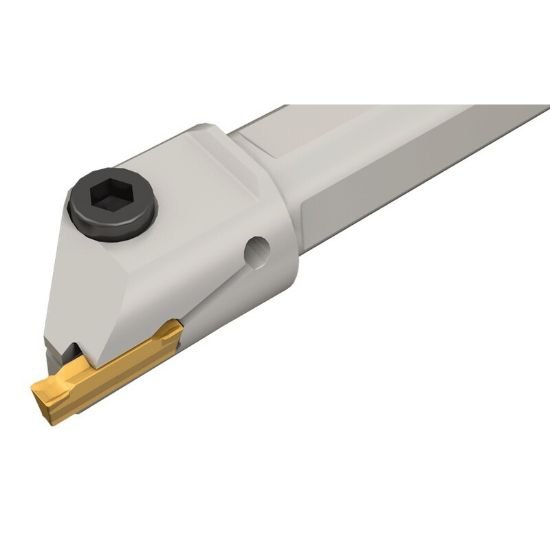

Picture of HFIR 15.9MC Iscar 3314670 Face Grooving Boring Bar 0.1570 3.99mm Wide 0.6250 15.88mm - 5/8 Shank

HFIR 15.9MC Iscar 3314670 Face Grooving Boring Bar 0.1570 3.99mm Wide 0.6250 15.88mm - 5/8 Shank

Part Number: ISC3314670 ISO: HFIR 15.9MC ANSI:HFIR 15.9MC
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1085870
Vendor: Sussex Tool and Supply
$272.93

Description

ISCAR 3314670 Dog Bone Face Grooving Boring Bar Dia0.6250 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Boring Bar
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style HF, DG, GR
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Insert Type/Oriantation Clamp Down
Dimensions & Sizing
Overall Length 5.9060 150.01MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 3, 5, 4
Cutting Width 0.1570 3.99MM
Performance & Capacity
Depth Of Cut Max 0.1970
Materials & Finish
Tool Material Steel
