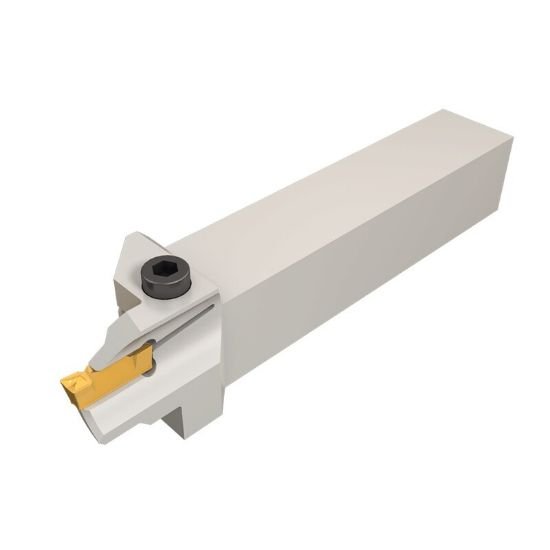

Picture of HFHR 25.4-31-5T15 Iscar 2500121 Face Grooving Stick Tool 0.1970 5.00mm Wide 1.0000 25.40mm Shank

HFHR 25.4-31-5T15 Iscar 2500121 Face Grooving Stick Tool 0.1970 5.00mm Wide 1.0000 25.40mm Shank

Part Number: ISC2500121

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1085567
Vendor: Sussex Tool and Supply
$220.00
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Cutter Type Stick Tool
Made In USA No
Tool Material Steel
Machine Side (Toolpost) STICK TOOL1.0000
Machine Side (Toolpost) Connection Type Stick Tool
Overall Length 6.0000 152.40MM
Shank Or Pilot Diameter 1.0000 25.40MM
Mach Side Connection Size 1.0000 25.40MM
Type of Tool Stick Tool
Insert Or Tool Tool
Insert Application General Purpose
Insert Style DG, GR, HF
Insert Shape Or Cutter Pocket Shape Dog Bone
Insert Type Positive
Insert Size (IC) 48, 5
Hand Right Hand
Inter Or Extern External
Depth Of Cut Max 0.6700
Insert Type Or Orientation Clamp Down
Cutting Width 0.1970 5.00MM
Tool Width 1.0000
Face Groove Min Diameter 1.2200
Face Groove Max Diameter 1.3800
