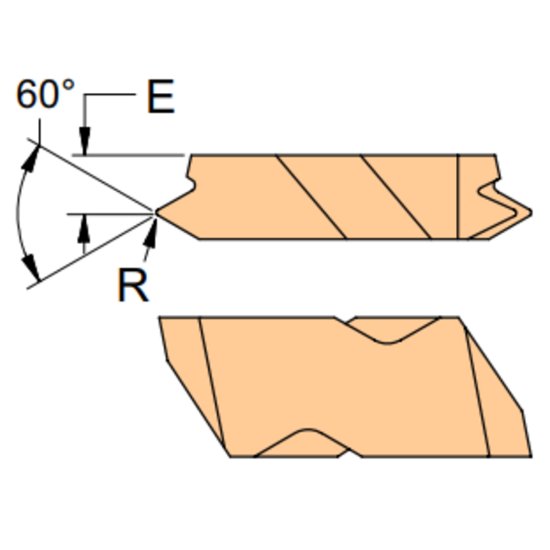

Picture of HDC 318VR-75 323FG Horizon 43490 Groove Threading,Threading Insert 0.0030 0.08mm Radius 18.00TPI NPT

HDC 318VR-75 323FG Horizon 43490 Groove Threading,Threading Insert 0.0030 0.08mm Radius 18.00TPI NPT

Part Number: HOR43490 ISO: HDC 318VR-75 323FG ANSI:HDC 318VR-75 323FG
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1023577
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

HORIZON 43490 Top Notch Groove Threading Positive TiAIN + TiN STAINLESS STEELS AND HIGH TEMP ALLOYS, SOME NON-FARRUS APLICATIONS AND FOR NON-INTURUPTED
Products specifications
Attribute name Attribute value
General Information
Shipping State N.Carolina
Made In USA YES
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style TOP NOTCH
Insert Shape/Cutter Pocket Shape Top Notch
Insert Type Positive
Hand Right Hand
Thread Type NPT
Inter/Extern Int / Ext
Insert Type/Oriantation Top Notch
Full Or Partial Profile Full Profile
Dimensions & Sizing
Insert Size Ic 3
Thread Pitch 18.00TPI
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0030 0.08MM
Performance & Capacity
Cut Rating <30HRC Steel, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAIN + TiN
Grade 323FG
