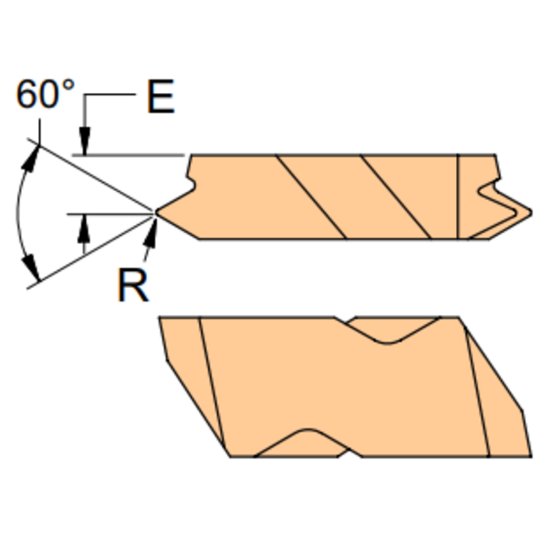

Picture of HDC 314VL-75 323FG Horizon 43010 Groove Threading,Threading Insert 0.0030 0.08mm Radius 14.00TPI NPT

HDC 314VL-75 323FG Horizon 43010 Groove Threading,Threading Insert 0.0030 0.08mm Radius 14.00TPI NPT

Part Number: HOR43010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HORIZON
SKU: 1003339
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10

HORIZON threading insert 14.00 TPI NPT thread type 0.0030 radius TiAIN TiN coating made in usa. Brand HORIZON. Coating TiAIN + TiN. Made In Usa Yes.

Key Details

Materials & Finish

  • Coating: TiAIN + TiN
  • Grade: 323FG

Thread & Fittings

  • Thread Type: NPT

Grades & Coatings

  • Alternate Description: HORIZON 43010 Top Notch Groove Threading Positive TiAIN + TiN HORIZON HDC 314VL-75 323FG Indexable, Threading Insert Top Notch NPT 14.00TPI 0.003 Corner Radius Carbide TiAIN + TiN HDC 314VL-75 323FG HDC 314VL-75 323FG.

Other Details

  • Brand: HORIZON
  • Shipping State: NORTH CAROLINA
  • Made In Usa: Yes

Technical Overview

What It Does

Provides threading for NPT threads at 14.00TPI. Features 0.0030 corner radius. Designed for use in threading operations with carbide insert.

Composition

Carbide, TiAIN + TiN coating, 323FG grade.

Typical Uses

Threading NPT connections in machining. Used in precision threading operations. Applied in tools with HDC 314VL-75 323FG indexable insert.

Products specifications
Attribute name Attribute value
Shipping State NORTH CAROLINA
Cutter Type Insert
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Coating TiAIN + TiN
Insert Or Tool Insert
Insert Application General Purpose
Corner Radius 0.0030 0.08MM
Insert Style TOP NOTCH
Insert Shape Or Cutter Pocket Shape Top Notch
Insert Type Positive
Insert Size (IC) 3
Grade 323FG
Hand Left Hand
Thread Pitch 14.00TPI
Thread Type NPT
Inter Or Extern Int / Ext
Insert Type Or Orientation Top Notch
Full or Partial Profile Full Profile
Thread Teeth 1
