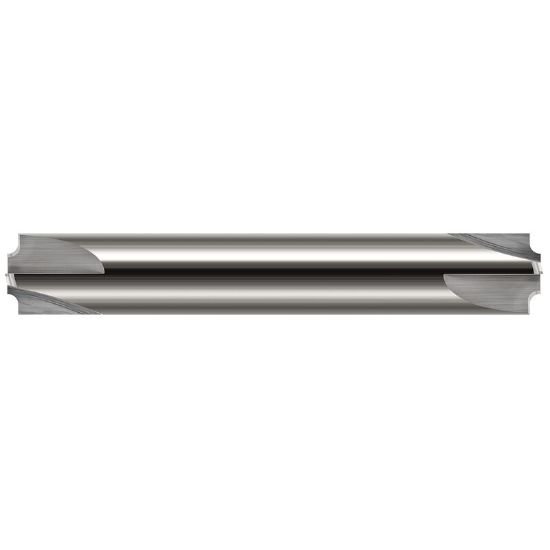

Picture of Harvey Tool 68100 .100 R X .107 P Flrd Crem, De 4 Flcorner Rounder Carbide Uncoated Double End Corner Rounder0.1000 2.54mm

Harvey Tool 68100 .100 R X .107 P Flrd Crem, De 4 Flcorner Rounder Carbide Uncoated Double End Corner Rounder0.1000 2.54mm

Part Number: HAR68100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1002061
Vendor: Sussex Tool and Supply
$114.00

Harvey Tool carbide corner rounder has 4 flutes. It features double end cylindrical connection. Size is 0.1000 inch 2.54mm. Made in USA with cylindrical machine side connection.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.3125

Grades & Coatings

  • Alternate Description: HARVEY TOOL Corner Rounder Carbide Uncoated Corner Rounder 0.1000 2.54MM Flutes 4 Double End HARVEY

Other Details

  • Brand: HARVEY TOOL
  • Shipping State: MASSACHUSETTS
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts corners with carbide tip. Designed for double end use. Works on fluted surfaces with 0.1000 diameter.

Composition

Carbide uncoated, cylindrical connection, 0.3125 machine side.

Typical Uses

Corner rounding on fluted surfaces. Used in machine toolpost with cylindrical connection. Fits 0.1000 2.54mm flutes.

Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Corner Rounder
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.3125
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.5000 63.50MM
Shank Or Pilot Diameter 0.3125 7.93MM - 5/16
Family Group HARVEY
Coolant Thru Non Coolant
Mach Side Connection Size 0.3125 7.94MM - 5/16
Tool Diameter 0.3125 7.94MM - 5/16
Flutes Or Inserts 4
Length Type Standard
Performance Rating General Performance
End Of Tool Shape Corner Rounder
Cutter Style Carbide Corner Rounder
Single Or Double End Double End
Corner Radius 0.1000 2.54MM
Inch Or Metric Inch
Taper Or Straight Flute Straight Flute
