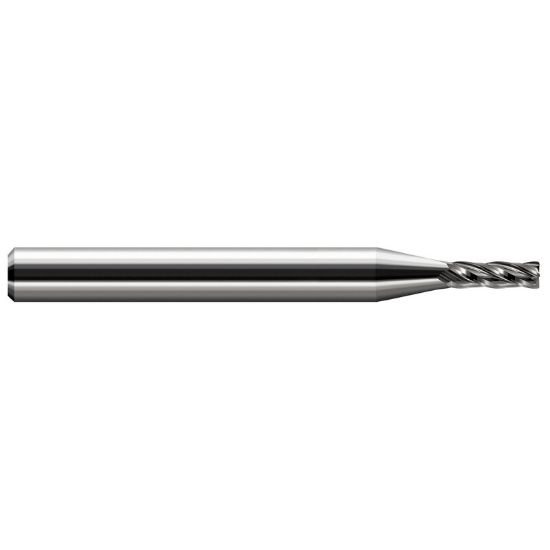

Picture of Harvey Tool 51699 .100 D x .020 R CRad EM, 4 FL Corner Rounder Carbide Uncoated Single End Corner Rounder0.0050 0.13mm

Harvey Tool 51699 .100 D x .020 R CRad EM, 4 FL Corner Rounder Carbide Uncoated Single End Corner Rounder0.0050 0.13mm

Part Number: HAR51699
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$35.60
SKU: 1283703

Description

HARVEY Tool Corner Rounder Carbide Uncoated Corner Rounder 0.0050 0.13MM 4 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Corner Rounder
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Corner Rounder
Cutter Style Corner Rounder Back Side
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 1.5000 38.10MM
Flutes/Inserts 4
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Tool Dia 0.1000 2.54MM
Geometry & Angles
Corner Radius 0.0050 0.13MM
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Tool Material Carbide
