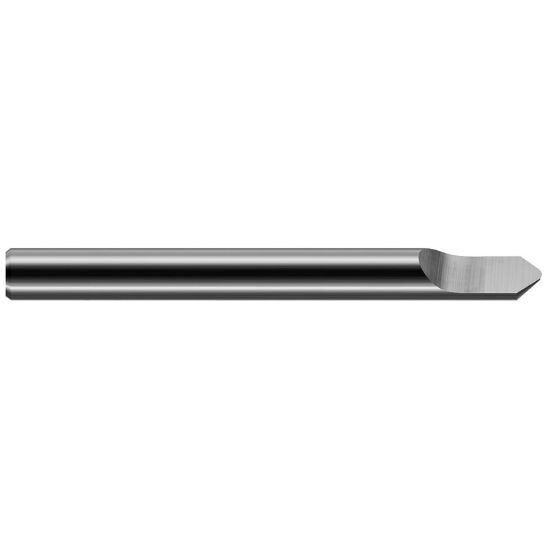

Picture of Harvey Tool 49420 3/16 D X 60 Deg X .010 R Engrengraving Carbide Uncoated Single End Engraver

Harvey Tool 49420 3/16 D X 60 Deg X .010 R Engrengraving Carbide Uncoated Single End Engraver

Part Number: HAR49420

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1002800
Vendor: Sussex Tool and Supply
$58.10

Harvey Tool engraving carbide uncoated single end engraver with 316 D 60 deg .010 R flutes cylindrical machine post connection. Made in Usa. Tool material: Carbide. Machine side toolpost connection: Cylindrical.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.1875

Grades & Coatings

  • Alternate Description: HARVEY TOOL Engraving Carbide Uncoated Engraver Flutes 2 Single End HARVEY

Other Details

  • Brand: HARVEY TOOL
  • Shipping State: MASSACHUSETTS
  • Made In Usa: Yes

Technical Overview

What It Does

Engraves with 3/16 D x 60 deg x .010 R cut. Designed for single end engraving. Used in precision tool operations.

Composition

Carbide uncoated flutes. Cylindrical connection 0.1875. Single end toolpost design.

Typical Uses

Engraving on metal surfaces. Fits in toolpost with cylindrical connection. Operated in machining setups.

Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Engraver End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.1875
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.0000 50.80MM
Shank Or Pilot Diameter 0.1875 4.76MM - 3/16
Family Group HARVEY
Coolant Thru Non Coolant
Mach Side Connection Size 0.1875 4.76MM - 3/16
Tool Diameter 0.1875 4.76MM - 3/16
Flutes Or Inserts 2
Length Type Standard
Performance Rating General Performance
End Of Tool Shape Engraver
Cutter Style Engraving
Single Or Double End Single End
Inch Or Metric Inch
Taper Or Straight Flute Straight Flute
Chamfer Angle 60.0°
