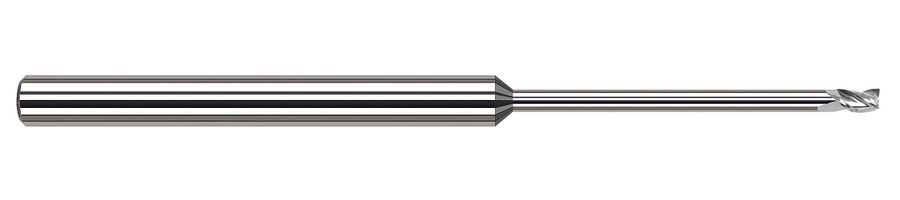

Picture of Harvey Tool 48920 Dia 0.02 Loc 0.0300 Oal2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Harvey Tool 48920 Dia 0.02 Loc 0.0300 Oal2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Part Number: HAR48920

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1002837
Vendor: Sussex Tool and Supply
$58.10

Harvey Tool carbide end mill with standard flute and helix. Cylindrical 0.1250 connection. Made in USA. Toolpost connection type cylindrical.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.1250

Grades & Coatings

  • Alternate Description: HARVEY TOOL Standard Helix End Mill Carbide Uncoated Square Sharp Standard Flute Flutes 3 Single End HARVEY

Other Details

  • Brand: HARVEY TOOL
  • Shipping State: MASSACHUSETTS
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute and helix. Performs end milling operations. Designed for standard toolpost use.

Composition

Carbide, uncoated, square sharp, standard flute.

Typical Uses

End milling, machining with cylindrical connection, standard helix operation.

Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.1250
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.5000 63.50MM
Shank Or Pilot Diameter 0.1250 3.17MM - 1/8
Family Group HARVEY
Coolant Thru Non Coolant
Mach Side Connection Size 0.1250 3.18MM - 1/8
Tool Diameter 0.0200 0.51MM - #76
Flutes Or Inserts 3
Length Type Standard / With Neck
Performance Rating General Performance
Length Of Cut 0.0300 0.76MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single Or Double End Single End
Inch Or Metric Inch
Neck Length 0.3000 7.62MM
Taper Or Straight Flute Straight Flute
