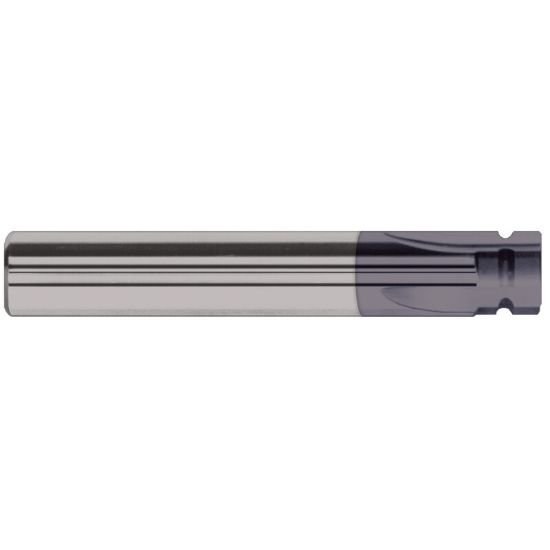

Picture of Harvey Tool 45920-C3 .020 R Carbide CONCAVE EM, AlTiN End Mill Carbide AlTiN Single End Concave0.0200 0.51mm

Harvey Tool 45920-C3 .020 R Carbide CONCAVE EM, AlTiN End Mill Carbide AlTiN Single End Concave0.0200 0.51mm

Part Number: HAR45920-C3 0.250 x 0.250 x 0.281 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1287538
Vendor: Sussex Tool and Supply
$72.00
HARVEY TOOL End Mill Carbide AlTiN Concave 0.0200 0.51MM Flutes 4 Single End HARVEY Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Coating ALTIN
Mach Side Connection Size 0.2500 6.35MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 4
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.2813 7.15MM
End Of Tool Shape Concave
Cutter Style Concave
Single/Double End Single End
Corner Radius 0.0200 0.51MM
Inch/Metric Inch
Taper/Straight Flute Straight Flute
