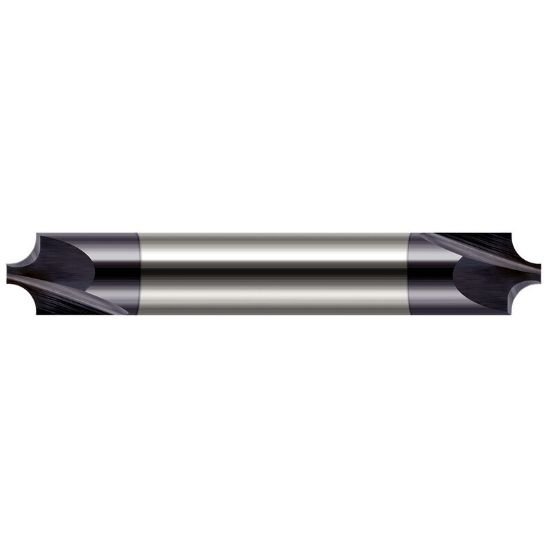

Picture of Harvey Tool 45322-C3 .022 R x .020 P FLRD CREM, DE 2 FL AlTiNCorner Rounder Carbide AlTiN Double End Corner Rounder0.0220 0.56mm

Harvey Tool 45322-C3 .022 R x .020 P FLRD CREM, DE 2 FL AlTiNCorner Rounder Carbide AlTiN Double End Corner Rounder0.0220 0.56mm

Part Number: HAR45322-C3
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1287491
Vendor: Sussex Tool and Supply
$57.20

Description

HARVEY TOOL Corner Rounder Carbide AlTiN Corner Rounder 0.0220 0.56MM Flutes 2 Double End HARVEY Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Corner Rounder
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Corner Rounder
Cutter Style Carbide Corner Rounder
Single/Double End Double End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 1.5000 38.10MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 2
Tool Dia 0.1250 3.18MM - 1/8
Geometry & Angles
Corner Radius 0.0220 0.56MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
