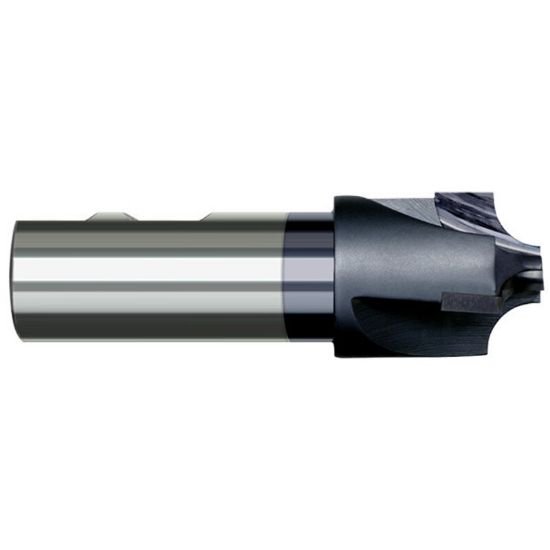

Picture of Harvey Tool 45040-C3 5/8 R CarbideTipped CREM, SE, AlTiNCorner Rounder Carbide AlTiN Single End Corner Rounder0.6250 15.88mm

Harvey Tool 45040-C3 5/8 R CarbideTipped CREM, SE, AlTiNCorner Rounder Carbide AlTiN Single End Corner Rounder0.6250 15.88mm

Part Number: HAR45040-C3
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1287471
Vendor: Sussex Tool and Supply
$434.80

Description

HARVEY TOOL Corner Rounder Carbide AlTiN Corner Rounder 0.6250 15.88MM Flutes 3 Single End HARVEY Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Corner Rounder
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Corner Rounder
Cutter Style Carbide Corner Rounder
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 4.2500 107.950MM
Shank/Pilot Dia 1.2500 31.7MM - 1-1/4
Flutes/Inserts 3
Tool Dia 2.0000 50.80MM
Geometry & Angles
Corner Radius 0.6250 15.88MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
