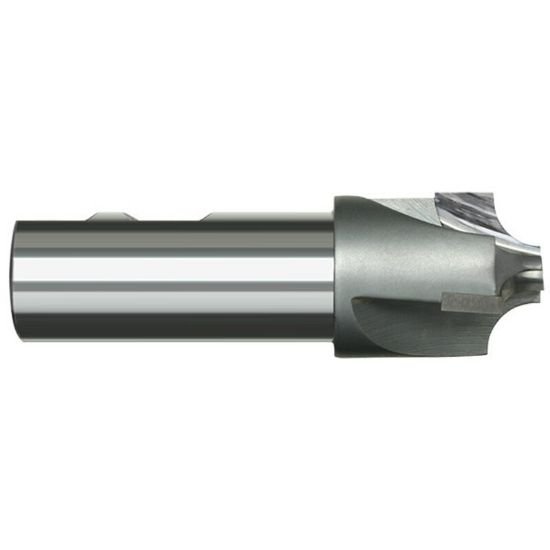

Picture of Harvey Tool 45024 3/8 R Carbidetipped Crem, Secorner Rounder Carbide Uncoated Single End Corner Rounder0.3750 9.53mm

Harvey Tool 45024 3/8 R Carbidetipped Crem, Secorner Rounder Carbide Uncoated Single End Corner Rounder0.3750 9.53mm

Part Number: HAR45024

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1002316
Vendor: Sussex Tool and Supply
$284.60

Harvey Tool corner rounder carbide uncoated single end 3/8 r 0.3750 9.53mm flutes cylindrical machine post connection. Made in Usa. Tool material: Carbide. Machine side connection: Cylindrical.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.8750

Grades & Coatings

  • Alternate Description: HARVEY TOOL Corner Rounder Carbide Uncoated Corner Rounder 0.3750 9.53MM Flutes 3 Single End HARVEY

Other Details

  • Brand: HARVEY TOOL
  • Shipping State: MASSACHUSETTS
  • Made In Usa: Yes

Technical Overview

What It Does

Crem, Secorner Rounder cuts corners with carbide tip. Designed for single end use. Works on machine post with cylindrical connection.

Composition

Carbide uncoated, 3/8 R, 0.3750 9.53mm, single end, cylindrical connection.

Typical Uses

Used in machining for corner rounding. Fits on toolpost with 0.8750 cylindrical connection. Operated in machine with carbide tip.

Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Corner Rounder
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.8750
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 3.7500 95.25MM
Shank Or Pilot Diameter 0.8750 22.23MM - 7/8
Family Group HARVEY
Coolant Thru Non Coolant
Mach Side Connection Size 0.8750 22.23MM - 7/8
Tool Diameter 1.2500 31.75MM - 1-1/4
Flutes Or Inserts 3
Length Type Standard
Performance Rating General Performance
End Of Tool Shape Corner Rounder
Cutter Style Carbide Corner Rounder
Single Or Double End Single End
Corner Radius 0.3750 9.53MM
Inch Or Metric Inch
Taper Or Straight Flute Straight Flute
