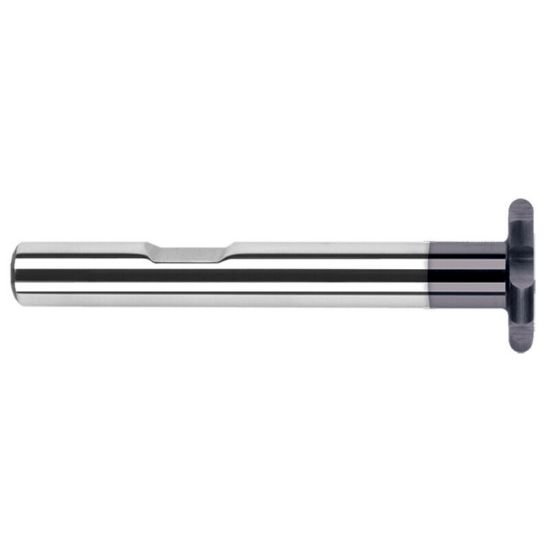

Picture of Harvey Tool 3291M-C3 1mm R x 3/4 D Full Rad Keyseat, AlTiNKey Seat Carbide AlTiN Single End Key Seat0.0393 1.00mm

Harvey Tool 3291M-C3 1mm R x 3/4 D Full Rad Keyseat, AlTiNKey Seat Carbide AlTiN Single End Key Seat0.0393 1.00mm

Part Number: HAR3291M-C3
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1286436
Vendor: Sussex Tool and Supply
$170.20

Description

HARVEY TOOL Key Seat Carbide AlTiN Key Seat 0.0393 1.00MM Flutes 6 Single End HARVEY Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Key Seat Cutter
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Key Seat
Cutter Style Key Seat Full Radius
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 3.0790 78.21MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 6
Tool Dia 0.7500 19.05MM - 3/4
Brush Width 0.7500 19.05MM
Geometry & Angles
Corner Radius 0.0393 1.00MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
