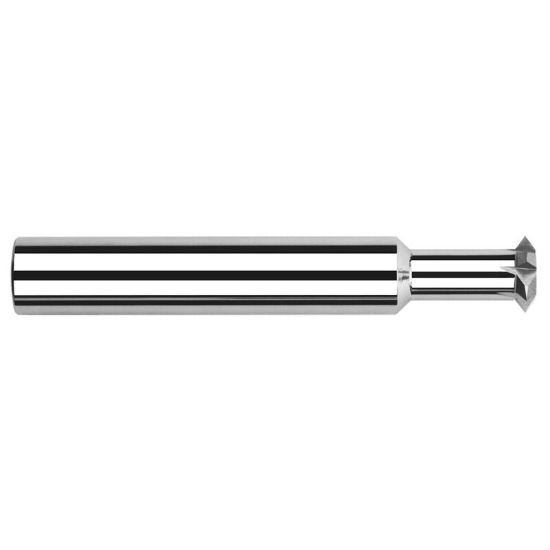

Picture of Harvey Tool 29740 1/4 D X 80 Carbidedascchamfer Mill Carbide Uncoated Single End Cham Mill

Harvey Tool 29740 1/4 D X 80 Carbidedascchamfer Mill Carbide Uncoated Single End Cham Mill

Part Number: HAR29740

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1003053
Vendor: Sussex Tool and Supply
$58.10

Harvey Tool carbide uncoated chamfer mill with 1 quarter diameter 80 flutes. Single end cylindrical connection made in USA. Machine side connection type cylindrical 0.2500. Made in Massachusetts.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.2500

Grades & Coatings

  • Alternate Description: HARVEY TOOL Chamfer Mill Carbide Uncoated Cham Mill Flutes 4 Single End HARVEY

Other Details

  • Brand: HARVEY TOOL
  • Shipping State: MASSACHUSETTS
  • Made In Usa: Yes

Technical Overview

What It Does

Chamfers workpieces with a carbide cutting edge. Performs single end chamfering on machine tools. Designed for precision cutting tasks.

Composition

Carbide uncoated, single end, 1/4 D X 80. Made in USA. Cylindrical connection 0.2500.

Typical Uses

Used in toolpost mounting. Chamfers edges on metal parts. Operated on milling machines.

Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Chamfer Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.2500
Machine Side (Toolpost) Connection Type Cylindrical
Shank Or Pilot Diameter 0.2500 6.35MM - 1/4 - E
Family Group HARVEY
Coolant Thru Non Coolant
Mach Side Connection Size 0.2500 6.35MM - 1/4 - E
Tool Diameter 0.2500 6.35MM - 1/4 - E
Flutes Or Inserts 4
Length Type Standard
Performance Rating General Performance
End Of Tool Shape Chamfer
Cutter Style Carbide Double Angle Chamfer
Single Or Double End Single End
Inch Or Metric Inch
Taper Or Straight Flute Straight Flute
Chamfer Angle 80.0°
