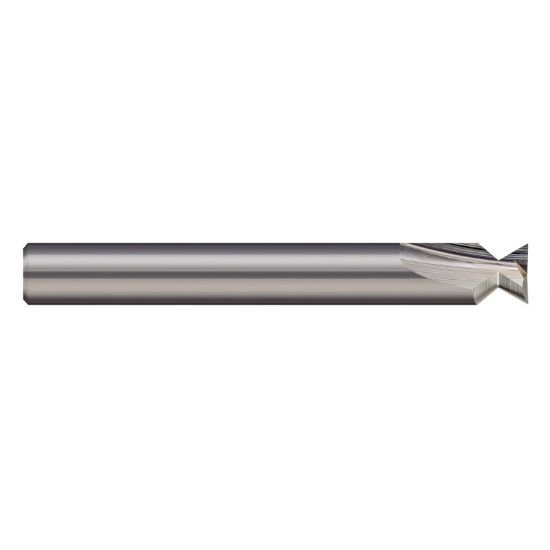

HARVEY TOOL 23914 .083 D x 48 DEG INCL CarbideDovetail, 2 FLDove Tail Carbide Uncoated Single End Dove Tail

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR23914
Delivery date: 3-5 days
$78.70
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#16, Material#4, Material#8
Performance Rating General Performance
Shipping State Massachusetts
Package Size 1
Sold by Pieces 1
Application Dovetail Milling
Additional Key Information 1 Dove Tail
Additional Key Information 2 48.0°
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Single/Double End Single End
Tool Material Carbide
Inch/Metric Inch
Flutes/Inserts 2
End Of Tool Shape Dove Tail
Cutter Style Dove Tail
Machine Side Connection Type Cylindrical
Chamfer Angle 48.0°
Machine Side CYLINDRICAL0.1250
Taper Flute No
Cutter Dia 0.0830 2.11MM
Machine Side Connection Size 0.1250 3.18MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
