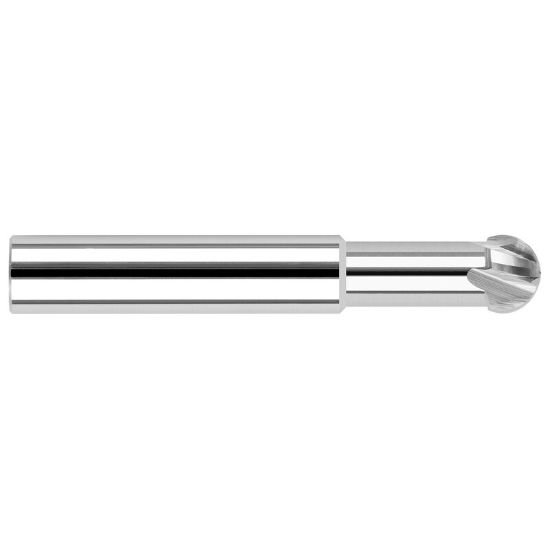

Picture of Harvey Tool 22810 .156 D X 220 Lr Undercut Em End Mill Standard Helix Carbide Uncoated Single End Ball Nose 220°

Harvey Tool 22810 .156 D X 220 Lr Undercut Em End Mill Standard Helix Carbide Uncoated Single End Ball Nose 220°

Part Number: HAR22810
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$76.30
SKU: 1023404

Description

HARVEY Tool End Mill Carbide Uncoated Ball Nose 220° 4 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Spherical Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Tool Dia 0.1563 3.97MM - 5/32
Geometry & Angles
Corner Radius Ball 220°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
