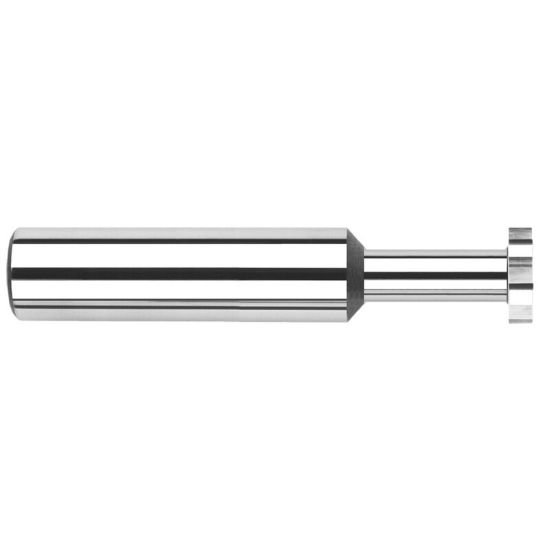

Picture of Harvey Tool 22210 3/16 D X .010 W Carbidekeyseatkey Seat Carbide Uncoated Single End Key Seat

Harvey Tool 22210 3/16 D X .010 W Carbidekeyseatkey Seat Carbide Uncoated Single End Key Seat

Part Number: HAR22210

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1002194
Vendor: Sussex Tool and Supply
$56.60

Carbide uncoated key seat with 316 diameter and 0010 width. Machine side cylindrical connection made in USA. HARVEY TOOL key seat flutes 6 single end. Made in MASSACHUSETTS.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.1875

Grades & Coatings

  • Alternate Description: HARVEY TOOL Key Seat Carbide Uncoated Key Seat Flutes 6 Single End HARVEY

Other Details

  • Brand: HARVEY TOOL
  • Shipping State: MASSACHUSETTS
  • Made In Usa: Yes

Technical Overview

What It Does

Provides a key seat cut on machine tools. Designed for single end key seat applications. Fits cylindrical toolpost connections.

Composition

Carbide uncoated material. Cylindrical machine side connection. 3/16 D X .010 W dimensions.

Typical Uses

Used in key seat cutting operations. Installed in toolpost with cylindrical connection. Matches HARVEY TOOL key seat flutes.

Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Key Seat Cutter
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.1875
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.0000 50.80MM
Shank Or Pilot Diameter 0.1875 4.76MM - 3/16
Family Group HARVEY
Coolant Thru Non Coolant
Mach Side Connection Size 0.1875 4.76MM - 3/16
Tool Diameter 0.1875 4.76MM - 3/16
Flutes Or Inserts 6
Length Type Standard
Performance Rating General Performance
End Of Tool Shape Key Seat
Cutter Style Key Seat
Single Or Double End Single End
Inch Or Metric Inch
Taper Or Straight Flute Straight Flute
Cutting Width 0.0100 0.25MM
