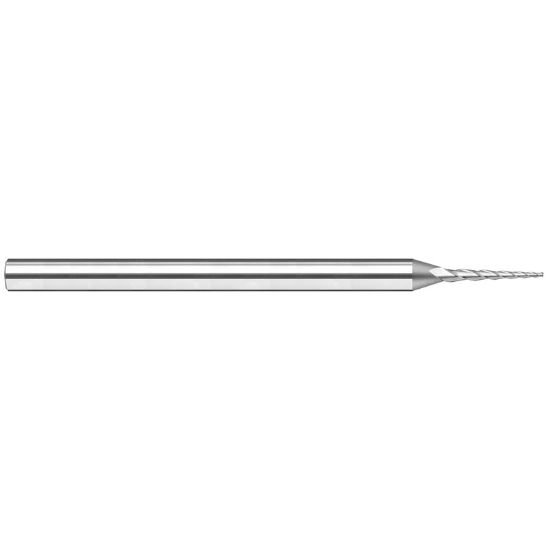

Picture of Harvey Tool 20560 .060 D X 0.5 Deg Carbidetapered Em End Mill Taper Flute Carbide Uncoated Single End Square Sharp

Harvey Tool 20560 .060 D X 0.5 Deg Carbidetapered Em End Mill Taper Flute Carbide Uncoated Single End Square Sharp

Part Number: HAR20560

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1002628
Vendor: Sussex Tool and Supply
$58.10

Carbide uncoated square sharp taper flute end mill with cylindrical machine post connection 0.1875 inch made in usa. HARVEY TOOL end mill with carbide material and cylindrical toolpost connection. Made in USA, shipping from MASSACHUSETTS. Toolpost connection type is cylindrical 0.1875.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.1875

Grades & Coatings

  • Alternate Description: HARVEY TOOL End Mill Carbide Uncoated Square Sharp Taper Flute Flutes 3 Single End HARVEY

Other Details

  • Brand: HARVEY TOOL
  • Shipping State: MASSACHUSETTS
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with a square sharp edge. Designed for use in machine tools with cylindrical connection. Functions as a single end end mill with tapered flute.

Composition

Carbide, uncoated, square sharp, tapered flute, single end.

Typical Uses

Used in machine tools with cylindrical toolpost. Fits in toolpost with 0.1875 diameter. Operates in cutting operations with carbide end mill design.

Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.1875
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 3.0000 76.20MM
Shank Or Pilot Diameter 0.1875 4.76MM - 3/16
Family Group HARVEY
Coolant Thru Non Coolant
Mach Side Connection Size 0.1875 4.76MM - 3/16
Tool Diameter 0.0600 1.52MM
Flutes Or Inserts 3
Length Type Standard
Performance Rating General Performance
End Of Tool Shape Square
Cutter Style Taper Flute Finisher
Single Or Double End Single End
Inch Or Metric Inch
Taper Or Straight Flute Taper Flute
Taper Angle 0.5°
