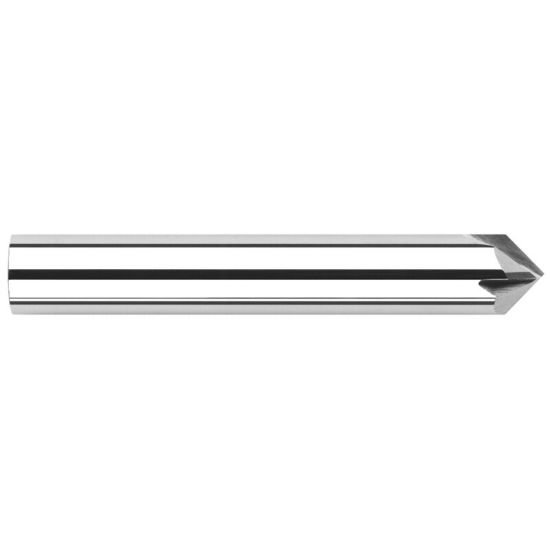

Picture of Harvey Tool 18032 1/2 D x 45 DEG Cobalt Chamfer Mill Carbide Uncoated Single End Cham Mill

Harvey Tool 18032 1/2 D x 45 DEG Cobalt Chamfer Mill Carbide Uncoated Single End Cham Mill

Part Number: HAR18032 0.500 x 0.500 x 0.250 x 3.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1281394
Vendor: Sussex Tool and Supply
$69.30
HARVEY TOOL Chamfer Mill Carbide Uncoated Cham Mill Flutes 2 Single End HARVEY Carbide
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Chamfer Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.0000 76.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.2500 6.35MM
End Of Tool Shape Chamfer
Cutter Style Chamfer Mill
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Chamfer Angle 90.0°
