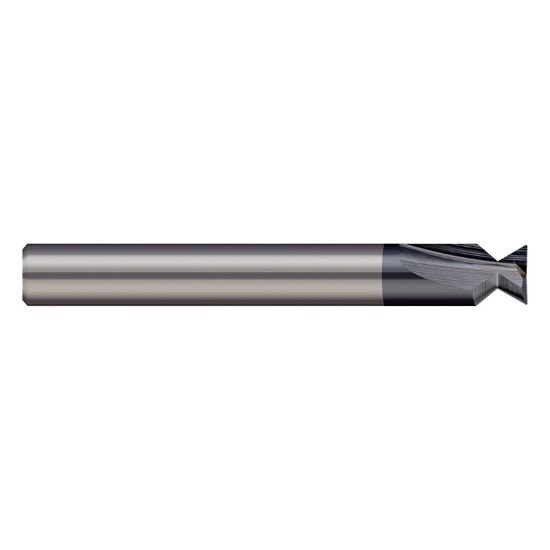

Picture of Harvey Tool 16812-C3 Dia 3/16 SH 0.1875Dove Tail Carbide AlTiN Single End Dove Tail

Harvey Tool 16812-C3 Dia 3/16 SH 0.1875Dove Tail Carbide AlTiN Single End Dove Tail

Part Number: HAR16812-C3
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$88.30
SKU: 1285079

Description

HARVEY TOOL Dove Tail Carbide AlTiN Dove Tail Flutes 2 Single End HARVEY Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Dove Tail End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Dove Tail
Cutter Style Dove Tail
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Tool Dia 0.1875 4.76MM - 3/16
Geometry & Angles
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
