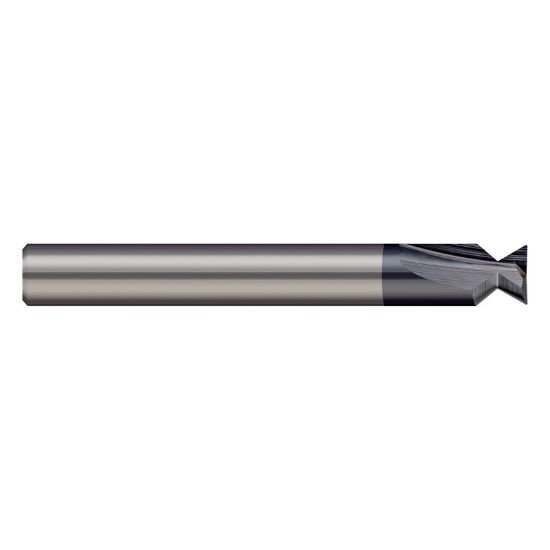

Picture of Harvey Tool 16724-C3 Dia 3/8 SH 0.3750Dove Tail Carbide AlTiN Single End Dove Tail

Harvey Tool 16724-C3 Dia 3/8 SH 0.3750Dove Tail Carbide AlTiN Single End Dove Tail

Part Number: HAR16724-C3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1285070
Vendor: Sussex Tool and Supply
$127.20
HARVEY TOOL Dove Tail Carbide AlTiN Dove Tail Flutes 3 Single End HARVEY Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Dove Tail End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Coating ALTIN
Mach Side Connection Size 0.3750 9.53MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 3
Tool Dia 0.3750 9.53MM - 3/8
Length Type STANDARD
Performance Rating General Performance
End Of Tool Shape Dove Tail
Cutter Style Dove Tail
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Chamfer Angle 60.0°
