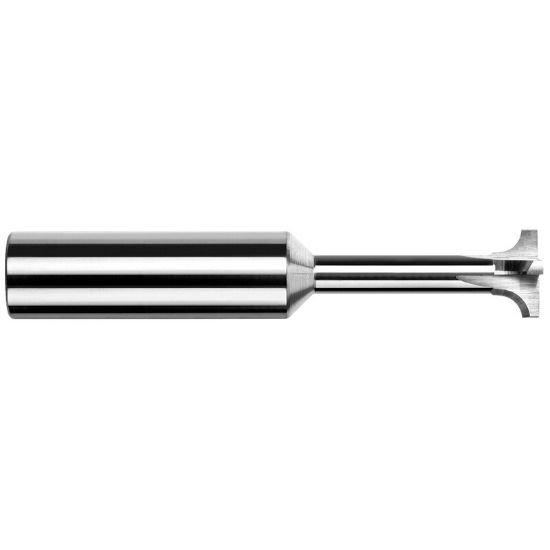

Picture of Harvey Tool 16112 .187 R x .625 D Back CREM, STD RCH, 4 FL Corner Rounder Carbide Uncoated Single End Corner Rounder0.1870 4.75mm

Harvey Tool 16112 .187 R x .625 D Back CREM, STD RCH, 4 FL Corner Rounder Carbide Uncoated Single End Corner Rounder0.1870 4.75mm

Part Number: HAR16112
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$353.10
SKU: 1177444

Description

HARVEY Tool Corner Rounder Carbide Uncoated Corner Rounder 0.1870 4.75MM 4 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Corner Rounder
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Corner Rounder
Cutter Style Corner Rounder Back Side
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Neck Length 1.0000 25.40MM
Flutes/Inserts 4
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Geometry & Angles
Corner Radius 0.1870 4.75MM
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Tool Material Carbide
