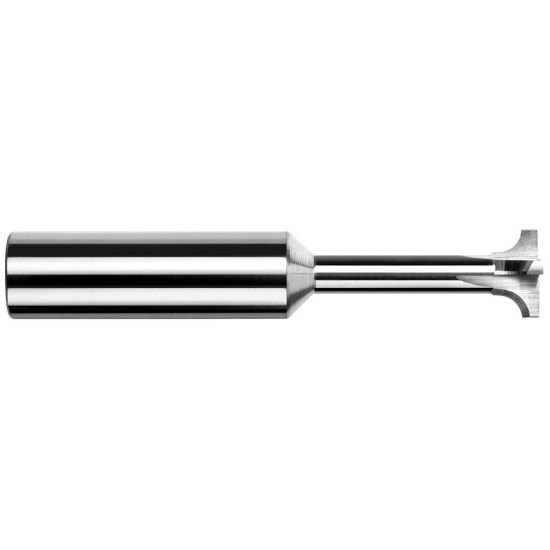

Picture of Harvey Tool 16060 .060 R x .312 D Back CREM, STD RCH, 3 FL Corner Rounder Carbide Uncoated Single End Corner Rounder0.0600 1.52mm

Harvey Tool 16060 .060 R x .312 D Back CREM, STD RCH, 3 FL Corner Rounder Carbide Uncoated Single End Corner Rounder0.0600 1.52mm

Part Number: HAR16060
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$157.90
SKU: 1281247

Description

HARVEY Tool Corner Rounder Carbide Uncoated Corner Rounder 0.0600 1.52MM 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Corner Rounder
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Corner Rounder
Cutter Style Corner Rounder Back Side
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Neck Length 0.8750 22.23MM
Flutes/Inserts 3
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Geometry & Angles
Corner Radius 0.0600 1.52MM
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Tool Material Carbide
