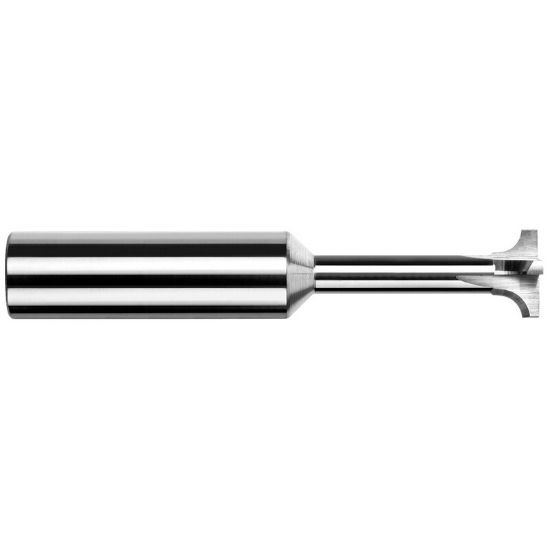

Picture of Harvey Tool 16027 .027 R x .187 D Back CREM, STD RCH, 3 FL Corner Rounder Carbide Uncoated Single End Corner Rounder0.0270 0.69mm

Harvey Tool 16027 .027 R x .187 D Back CREM, STD RCH, 3 FL Corner Rounder Carbide Uncoated Single End Corner Rounder0.0270 0.69mm

Part Number: HAR16027
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$105.80
SKU: 1133926

Description

HARVEY Tool Corner Rounder Carbide Uncoated Corner Rounder 0.0270 0.69MM 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Corner Rounder
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Corner Rounder
Cutter Style Corner Rounder Back Side
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Neck Length 0.5000 12.70MM
Flutes/Inserts 3
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Geometry & Angles
Corner Radius 0.0270 0.69MM
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Tool Material Carbide
