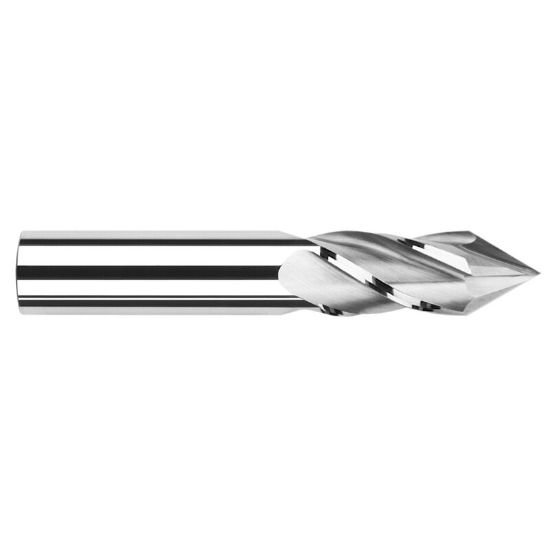

Picture of Harvey Tool 15416 Dia 1/4 Loc 0.7500 Oal2.50Drill/Mill Carbide Uncoated Single End Drill Point

Harvey Tool 15416 Dia 1/4 Loc 0.7500 Oal2.50Drill/Mill Carbide Uncoated Single End Drill Point

Part Number: HAR15416

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1002732
Vendor: Sussex Tool and Supply
$58.10

Harvey Tool carbide drill point has 0.7500 diameter and 2.50 depth. It features single end flutes and cylindrical machine post connection. Made in USA with cylindrical toolpost connection. Tool material is carbide.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.2500

Grades & Coatings

  • Alternate Description: HARVEY TOOL Drill/Mill Carbide Uncoated Drill Point Flutes 4 Single End HARVEY

Other Details

  • Brand: HARVEY TOOL
  • Shipping State: MASSACHUSETTS
  • Made In Usa: Yes

Technical Overview

What It Does

Drills and mills with a carbide point. Designed for single end use. Operates with cylindrical connection.

Composition

Carbide uncoated point. Flutes 4. Diameter 1/4 inch. Overall length 2.50 inches.

Typical Uses

Used in drilling and milling operations. Fits in machine toolpost. Functions with cylindrical connection.

Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Drill Mill, End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.2500
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.5000 63.50MM
Shank Or Pilot Diameter 0.2500 6.35MM - 1/4 - E
Family Group HARVEY
Coolant Thru Non Coolant
Mach Side Connection Size 0.2500 6.35MM - 1/4 - E
Tool Diameter 0.2500 6.35MM - 1/4 - E
Flutes Or Inserts 4
Length Type Standard
Performance Rating General Performance
Length Of Cut 0.7500 19.05MM
End Of Tool Shape Drill Point
Cutter Style Drill/Mill
Single Or Double End Single End
Inch Or Metric Inch
Taper Or Straight Flute Straight Flute
