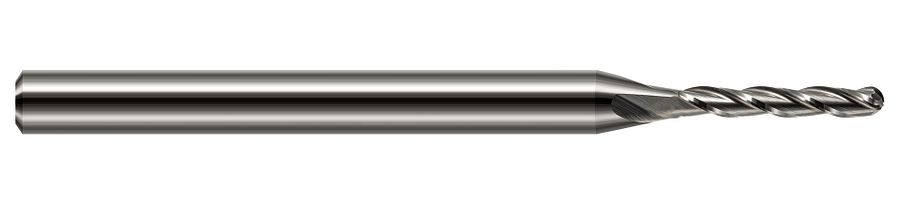

Picture of Harvey Tool 12850 Dia 0.05 Loc 0.30 Oal2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Noseball

Harvey Tool 12850 Dia 0.05 Loc 0.30 Oal2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Noseball

Part Number: HAR12850

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1002720
Vendor: Sussex Tool and Supply
$58.10

Harvey Tool carbide uncoated ball nose end mill with standard flute and helix. 0.05 dia, 0.30 loc, 2.50 oal. Cylindrical toolpost connection made in USA.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.1250

Grades & Coatings

  • Alternate Description: HARVEY TOOL Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 3 Single End HARVEY

Other Details

  • Brand: HARVEY TOOL
  • Shipping State: MASSACHUSETTS
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute and helix. Performs end milling with ball nose end. Suitable for standard toolpost setups.

Composition

Carbide, uncoated, standard flute, standard helix, single end ball nose ball.

Typical Uses

End milling, cutting with cylindrical connection, standard toolpost mounting.

Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.1250
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.5000 63.50MM
Shank Or Pilot Diameter 0.1250 3.17MM - 1/8
Family Group HARVEY
Coolant Thru Non Coolant
Mach Side Connection Size 0.1250 3.18MM - 1/8
Tool Diameter 0.0500 1.27MM
Flutes Or Inserts 3
Length Type Standard
Performance Rating General Performance
Length Of Cut 0.3000 7.62MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single Or Double End Single End
Inch Or Metric Inch
Taper Or Straight Flute Straight Flute
