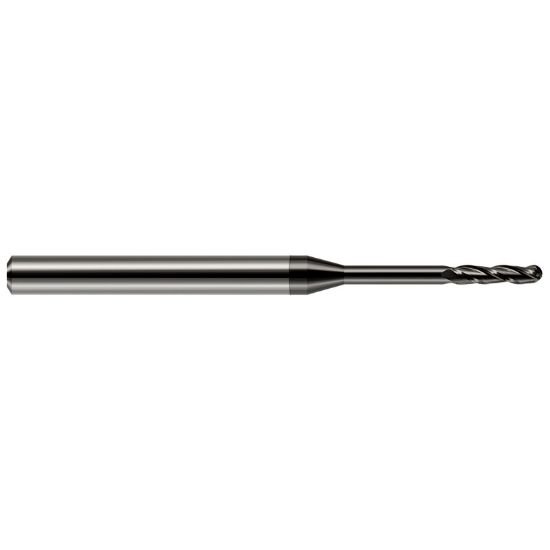

Picture of Harvey Tool 10220 Dia 0.02 Loc 0.10 Oal2.50 End Mill Standard Flute Standard Helix Carbide Diamond Single End Ball Noseball

Harvey Tool 10220 Dia 0.02 Loc 0.10 Oal2.50 End Mill Standard Flute Standard Helix Carbide Diamond Single End Ball Noseball

Part Number: HAR10220

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1001980
Vendor: Sussex Tool and Supply
$77.20

HARVEY TOOL standard helix end mill with diamond coating. Cylindrical connection type CYLINDRICAL0.1250. Made in USA, shipping state Massachusetts. Tool material carbide, flute flutes 3.

Key Details

Materials & Finish

  • Coating: Diamond
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.1250

Grades & Coatings

  • Alternate Description: HARVEY TOOL Standard Helix End Mill Carbide Diamond Ball Nose Ball Standard Flute Flutes 3 Single End HARVEY

Other Details

  • Brand: HARVEY TOOL
  • Shipping State: MASSACHUSETTS
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with standard flute and helix. Performs ball nose end milling. Suitable for standard toolpost setups.

Composition

Carbide, diamond coating, cylindrical connection.

Typical Uses

End milling, ball nose cutting, standard flute operations in machine tools.

Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.1250
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.5000 63.50MM
Shank Or Pilot Diameter 0.1250 3.17MM - 1/8
Family Group HARVEY
Coolant Thru Non Coolant
Coating Diamond
Mach Side Connection Size 0.1250 3.18MM - 1/8
Tool Diameter 0.0200 0.51MM - #76
Flutes Or Inserts 3
Length Type Standard
Performance Rating General Performance
Length Of Cut 0.1000 2.54MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single Or Double End Single End
Inch Or Metric Inch
Taper Or Straight Flute Straight Flute
