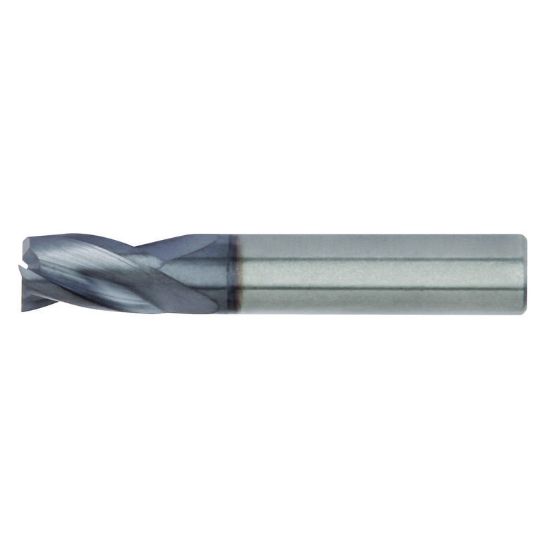

HANITA/WIDIA D0130200W006S DIA 2MM SH 0.2362 LOC 0.2362 OAL2.2441 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp WIDIA Series Mills

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: HAND0130200W006S
Delivery date: 3-5 days
$26.07
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Additional Key Information 2 Sharp
Application Side Milling, Slot Milling, Face Milling
Shipping State Ohio
Material # Material#2, Material#17, Material#15
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Additional Key Information 4 High Helix
Package Size 1
Performance Rating General Performance
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side Connection Type Weldon
Helix Angle 30°
Cutter Dia 0.0787 2.00MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Flutes/Inserts 3
End Of Tool Shape Square
Machine Side WELDON0.2362
Single/Double End Single End
Dimension Description 0.079 x 0.236 x 0.236 x 2.244
Inch/Metric Metric
Overall Len 2.2441 57.00MM
Machine Side Connection Size 0.2362 6.00MM
Length Type Standard
Tool Material Carbide
Shank/Pilot Dia 0.2362 6.00MM
Length Of Cut 0.2362 6.00MM
Cutter Style Carbide Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
