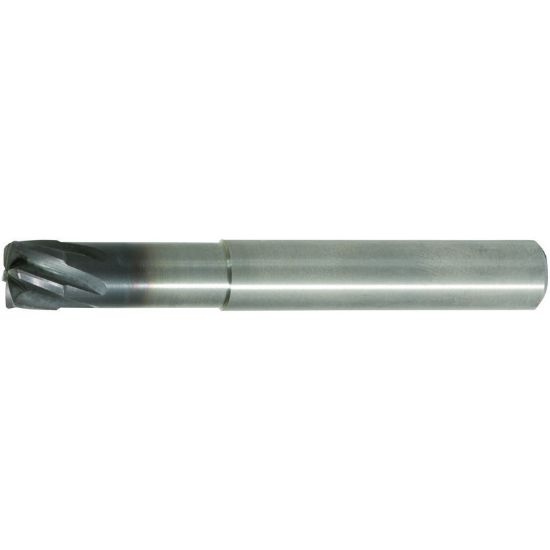

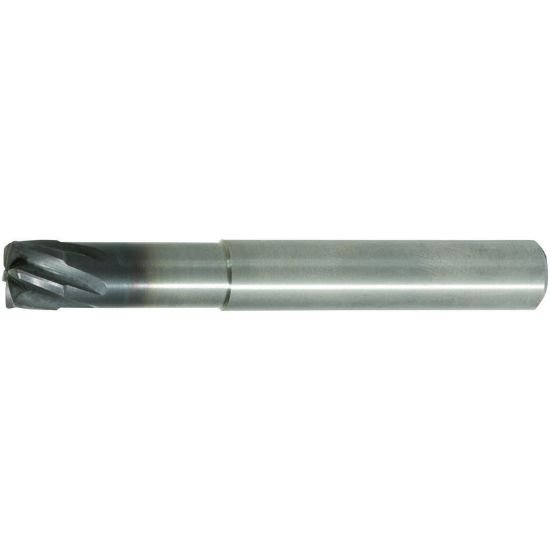

Picture of Hanita/Widia TM7Fine610004 Dia 3/8 SH 0.3750 LOC 0.3125 OAL3.50 End Mill Carbide AlTiN Single End High Feed0.0235 0.60mm Vision Plus X-Feed

Hanita/Widia TM7Fine610004 Dia 3/8 SH 0.3750 LOC 0.3125 OAL3.50 End Mill Carbide AlTiN Single End High Feed0.0235 0.60mm Vision Plus X-Feed

Part Number: HANTM7FN610004 0.375 x 0.375 x 0.313 x 3.500
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1238076
Vendor: Sussex Tool and Supply
$228.48

Description

HANITA/WIDIA 3484762 End Mill Carbide AlTiN High Feed 0.0235 0.60MM Flutes 6 Single End Vision Plus X-Feed Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape High Feed
Cutter Style Carbide Feed Mill
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 6
Tool Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.3125 7.94MM
Neck Length 1.2500 31.75MM
Geometry & Angles
Corner Radius 0.0235 0.60MM
Helix Angle 20
Performance & Capacity
Cut Rating Grey Iron, <60HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
