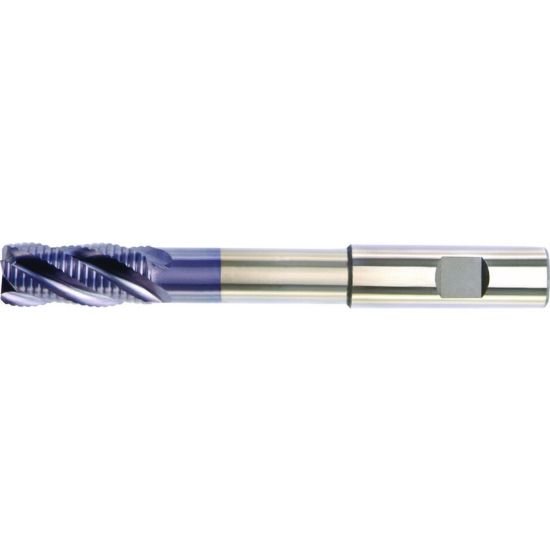

Picture of Hanita/Widia TF6TNR32009 Dia 1-1/4 SH 2.00 LOC 2.00 OAL6.50 End Mill Powder Metal TiAlN Single End 45.0° Chamfer Widia Series Mills

Hanita/Widia TF6TNR32009 Dia 1-1/4 SH 2.00 LOC 2.00 OAL6.50 End Mill Powder Metal TiAlN Single End 45.0° Chamfer Widia Series Mills

Part Number: HANTF6TNR32009

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237570
Vendor: Sussex Tool and Supply
$477.60
The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 1.2500 31.75MM - 1-1/4
Cutter Type Solid End Mill
Length Type STANDARD
Performance Rating High Performance
Center Cutting Center Cutting
Overall Length 6.5000 165.10MM
Machine Side (Toolpost) WELDON1.2500
Cutting Edge Definition The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, it is still wear-resistant and has a high hot hardness., but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however
Length Of Cut 2.0000 50.80MM
Type of Tool End Mill
End Of Tool Shape Corner Chamfer
Cutter Style Powder Metal Fine Rougher
Inch Or Metric Inch
Machine Side (Toolpost) Connection Type Weldon
Flutes Or Inserts 6
Shipping State OHIO
Family Group WIDIA Series Mills
Single Or Double End Single End
Cutting Edge Material Powder Metal
Tool Material Powder Metal
Mach Side Connection Size 1.2500 31.75MM - 1-1/4
Coating TiAlN
Tool Diameter 1.2500 31.75MM - 1-1/4
Coolant Thru Non Coolant
Neck Length 4.0000 101.60MM
Helix Angle 55°
Made In USA YES
