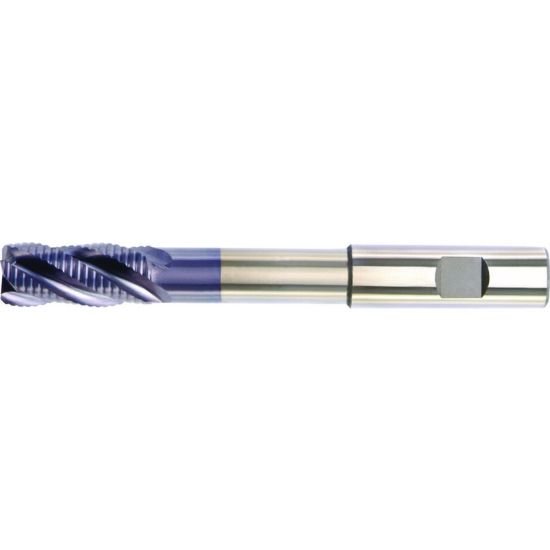

Picture of Hanita/Widia TF6TNR25018 Dia 1 SH 2.00 LOC 2.00 OAL8.50 End Mill Powder Metal TiAlN Single End 45.0° Chamfer Widia Series Mills

Hanita/Widia TF6TNR25018 Dia 1 SH 2.00 LOC 2.00 OAL8.50 End Mill Powder Metal TiAlN Single End 45.0° Chamfer Widia Series Mills

Part Number: HANTF6TNR25018

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237571
Vendor: Sussex Tool and Supply
$402.07
The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 1.0000 25.40MM
Cutter Type Solid End Mill
Length Type STANDARD
Performance Rating High Performance
Center Cutting Center Cutting
Overall Length 8.5000 215.90MM
Machine Side (Toolpost) WELDON1.0000
Cutting Edge Definition The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, it is still wear-resistant and has a high hot hardness., but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however
Length Of Cut 2.0000 50.80MM
Type of Tool End Mill
End Of Tool Shape Corner Chamfer
Cutter Style Powder Metal Fine Rougher
Inch Or Metric Inch
Machine Side (Toolpost) Connection Type Weldon
Flutes Or Inserts 5
Shipping State OHIO
Family Group WIDIA Series Mills
Single Or Double End Single End
Cutting Edge Material Powder Metal
Tool Material Powder Metal
Mach Side Connection Size 1.0000 25.40MM
Coating TiAlN
Tool Diameter 1.0000 25.40MM
Coolant Thru Non Coolant
Neck Length 6.0000 152.40MM
Helix Angle 55°
Made In USA YES
