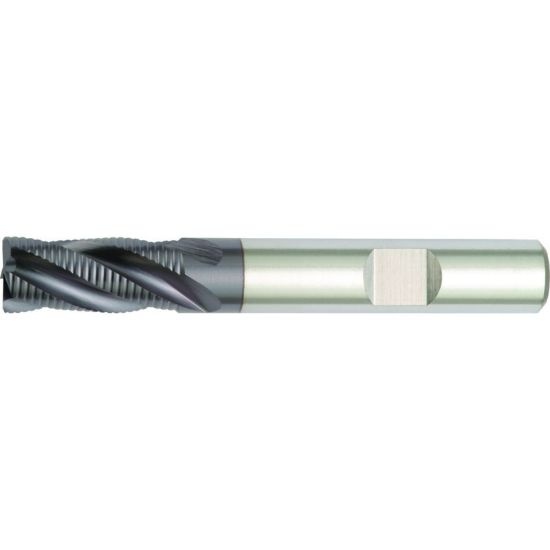

Picture of Hanita/Widia TF6T0R38009 Dia 1-1/2 SH 2.00 LOC 2.00 OAL4.50 End Mill Powder Metal TiAlN Single End 45.0° Chamfer Widia Series Mills

Hanita/Widia TF6T0R38009 Dia 1-1/2 SH 2.00 LOC 2.00 OAL4.50 End Mill Powder Metal TiAlN Single End 45.0° Chamfer Widia Series Mills

Part Number: HANTF6T0R38009 1.500 x 1.250 x 2.000 x 4.500
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1237584
Vendor: Sussex Tool and Supply
$379.41

Description

HANITA/WIDIA 2836193 End Mill Powder Metal TiAlN 45.0° Chamfer Chamfer Flutes 6 Single End WIDIA Series Mills Powder Metal Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Length Type STANDARD
End Of Tool Shape Corner Chamfer
Cutter Style Powder Metal Fine Rougher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.5000 114.30MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 6
Tool Dia 1.5000 38.10MM - 1-1/2
Length Of Cut 2.0000 50.80MM
Geometry & Angles
Helix Angle 35
Performance & Capacity
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Powder Metal
Cutting Edge Mat Powder Metal
Coating TiAlN
